2902019, Phoenix Contact MACX MCR Series Signal Conditioner, Voltage Input, Current, Voltage Output, 24V dc Supply, ATEX

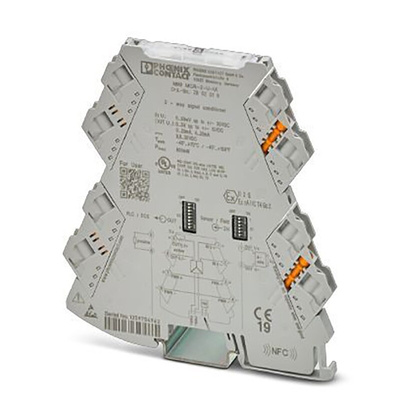

Phoenix Contact Signal Conditioner, 3 Way, 24V DC Nominal Supply Voltage - MINI MCR-2-U-UI - 2902019

Need to prepare signals for processing? Get transmitting with this Phoenix Contact signal conditioner. It's designed to turn inputs between -30 and +30V into outputs of -10 to +10V with a maximum current of 22mA. This makes transmissions easier to process later in your network. You can also set the input voltage in the mV range to improve accuracy and avoid sending mixed signals. Thanks to its wide operating temperature range between -40 and +70°C, this unit can handle the heat.
For additional protection from unplanned voltage surges, this handy device has an overvoltage category II rating, which applies to permanently connected and plug-attached domestic equipment. Mounting's not a problem, either – just screw it in place in any position you like, for a fast and flexible setup. Thanks to compact dimensions of 6.2 (W) x 110.5 (H) x 120.5mm (D), you'll hardly know it's there.

• PBT housing is resistant to chemical damage
• Wide operating humidity range between 5 and 95% for use in areas with high levels of non-condensing water vapour
• IP20 rating indicates it's touch-proof and protected against objects larger than 12mm
• Configurable input and output channels allow for increased versatility

3-way signal conditioner, with configurable input/output, for electrical isolation and conversion of analog signals in the mV and V range, unipolar as well as bipolar. Screw connection technology, standard configuration.

Datasheet 2902019

Instruction Sheet - 2902019

Line Drawing - 2902019

Manual - Pro Signal Conditioners
