The MAX40658 and MAX40659 are transimpedance amplifiers for optical distance measurement receivers for LiDAR applications. Low noise, high gain, low group delay, and fast recovery from overload make these parts ideal for distance-measurement applications.
Important features include 45nARMS input-referred noise, an internal 100mA clamp, 18kΩ (MAX40658) and 36kΩ (MAX40659) transimpedance, and greater than 360MHz bandwidth. An offset input allows adjustment of input offset current. Operating from a +3.3V supply, the MAX40658 and MAX40659 consume only 70mW.

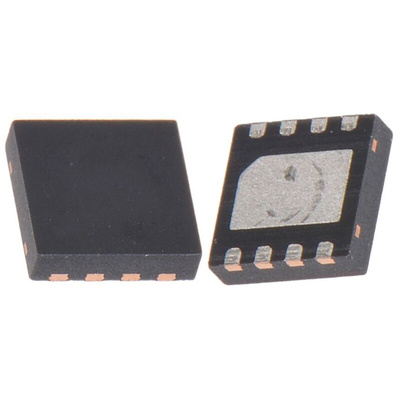

The MAX40658 and MAX40659 are available in a 3mm x 3mm, 8-pin TDFN package or bare die, and are specified over the -40°C to 85°C operating temperature range.
45nARMS Noise
Two Transimpedance Values Available
18kΩ (MAX40658)
36kΩ (MAX40659)
360MHz Minimum Bandwidth
Internal Clamp For Input Current Up To 100mA
Offset Adjust Input
70mW Power Dissipation
3.3V Operation
Applications
Autonomous Driving Systems
Industrial Safety Systems
LIDAR Receivers
Optical Distance Measurement
