Maxim Integrated MAX9947ETE+ RF Transceiver, 16-Pin TQFN, Трансивер

The MAX9947 is an AISG-compliant, fully integrated transceiver. The MAX9947 receiver offers a typical dynamic range of 20dB and integrates a bandpass filter that operates in the 2.176MHz frequency with a narrow 200kHz bandwidth.
The MAX9947 transmitter integrates a bandpass filter that is compliant with the AISG spectrum emission profile. It can modulate OOK signals up to 115.2kbps. The output power can be varied with external resistors from +7dBm to +12dBm to compensate for loss in the external circuitry and cabling.
The MAX9947 also features a direction output to facilitate bus arbitration in tower-mounted equipment.

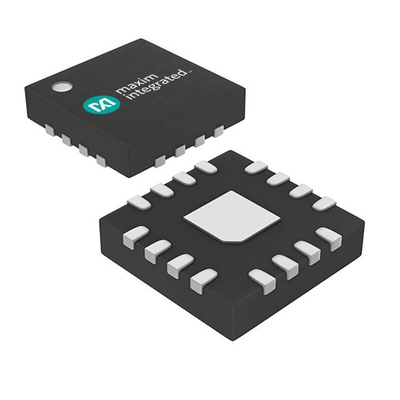

The MAX9947 is available in a small, 3mm x 3mm 16-pin TQFN and is rated for operation in the -40°C to +105°C temperature range.

Receiver Wide Input Dynamic Range
-15dBm to +5dBm in 50Ω
Variable Transmitter Output Level from +7dBm to +12dBm
AISG-Compliant Output Emission Profile
AutoDirection Output
No Need of Microcontrollers to Handle Bus Arbitration in Tower-Mounted Equipment
Supports All AISG Data Rates
9.6kbps
38.4kbps
115.2kbps
3.0V to 5.5V Voltage Supply
Independent Logic Supply
Small, 3mm x 3mm 16-Pin TQFN Package
Applications
Base Stations
Tower Equipment

Datasheet - MAX9947ETE+
