A9P22604, Schneider Electric Acti 9 Acti9 iDT40T MCB, 1P+N, 4A Curve C, 230V AC, 6 kA Breaking Capacity

Schneider Electric Acti 9 DT40 MCB 1 Pole

Acti 9 DT40 series multi-standard circuit breakers combine circuit protection against short circuit currents and circuit protection against overload currents it also protects people against indirect contact with TN and IT neutral systems. Fully compliant with standards IEC/EN 60898 and IEC/EN 60947-2. ACTi 9 is fully tested, approved and certified by national and international third parties. It guarantees that your installation is safe and compliant with all relevant safety standards which demonstrates to your customers that you use industry-approved materials and best practices. These MCBs are normally used for high inductive loads where switching surges are high. Providing essential protection in industrial and commercial buildings, these miniature circuit breakers work especially well in polluted environments and networks.

VisiSafe guarantees the downstream circuit is always safe regardless of overvoltage conditions, even in the most demanding environments; the green strip indicates the safe position of contacts.
VisiTrip red window on the front face indicates fault tripping allowing fast diagnosis, resolution, and reclosing loads for easier building management and reduced downtime

Benefits and Features

Downstream circuit is always safe
Class-2 insulation: ensures continuous protection for both operators and unqualified persons.
Insulated terminals (IP20)
Highly durable with robust connections that provide twice the standard tightening torque.
Provide greater continuity of service thanks to VisiTrip.
Double clip for dismounting with comb busbar in place
5 pc- 5/64’’ hex key wrenches with polybag

Standards

IEC 60898 - Relates to Low Voltage Circuit Breakers for use in household and similar
Installations. In the UK traditionally known as miniature circuit breakers
(MCB’s).
IEC 60947-2 Relates to Low Voltage Circuit Breakers for use in industrial and similar
Installations. In the UK traditionally known as moulded case circuit breakers
(MCCB’s) and also air circuit breakers (ACB’s).

Q: What is the differences in the Tripping Curves B, C, and D?

A: Curve B: Tripping: 3 to 5 times the rated current.
Applications: protection of generators, persons, very long cables
Curve C: Tripping: 5 to 10 times the rated current
Applications: protection of circuits and general applications
Curve D: Tripping: 10 to 14 times the rated current
Applications: protection of high surge circuits, welders, transformers and motors

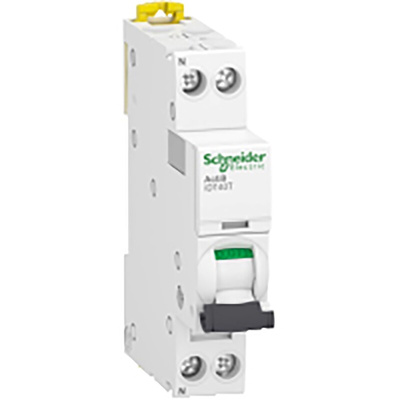

A9P22604 Acti9 Disbo iDT40T MCB Miniature Circuit Breaker IP20 / IP40 1 Pole + N.

• Short product name IDT40T


• Distribution applications.


• 1 x Protected poles.


• Left Neutral position.


• AC Network.


• Curve code C.


• Isolation to EN/IEC 60947-2.


• NF Quality label.


• [Ue] rated operational voltage 230 V AC 50 Hz.


• With Contact position indicator.


• Toggle control type.


• Trip indicator ON/OFF.


• Clip-On Mounting (DIN rail).


• 2 x 9mm Pitches.


• MCB is White.


• Weight 120 g.


• Can be padlocked.


• IP20 to IEC 60529, IP40 (modular) to IEC 60529.

Breaking.

• 4500 A Icn at 230 V AC 50 Hz conforming to EN/IEC 60898-1.


• 6 kA Icu at 230 V AC 50 Hz conforming to EN/IEC 60947-2.

• Mechanical 20,000 Cycles.


• Electrical 20,000 Cycles.

• Tunnel terminal (top or bottom) 1…10 mm² flexible.


• Tunnel terminal (top or bottom) 1…16 mm² rigid.

Approvals

CE, BV, RINA, DNV.

Standards

EN/IEC 60947-2, EN/IEC 60898-1.

Datasheet A9P22604

Green Premium Ecolabel

Green Premium - Product Environmental Profile

Product Environmental Profile
