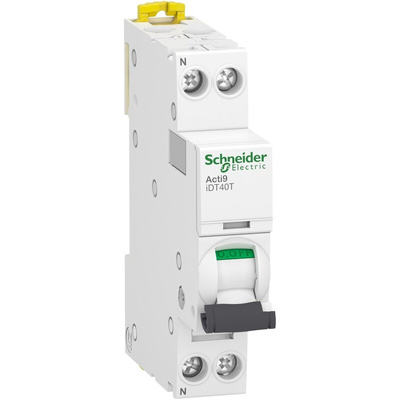

A9P22616, Schneider Electric Acti 9 Acti9 iDT40T MCB, 1P+N, 16A Curve C, 230V AC, 6 kA Breaking Capacity

Schneider Electric Acti 9 DT40 MCB 1 Pole

Acti 9 DT40 series multi-standard circuit breakers combine circuit protection against short circuit currents and circuit protection against overload currents it also protects people against indirect contact with TN and IT neutral systems. Fully compliant with standards IEC/EN 60898 and IEC/EN 60947-2. ACTi 9 is fully tested, approved and certified by national and international third parties. It guarantees that your installation is safe and compliant with all relevant safety standards which demonstrates to your customers that you use industry-approved materials and best practices. These MCBs are normally used for high inductive loads where switching surges are high. Providing essential protection in industrial and commercial buildings, these miniature circuit breakers work especially well in polluted environments and networks.

VisiSafe guarantees the downstream circuit is always safe regardless of overvoltage conditions, even in the most demanding environments; the green strip indicates the safe position of contacts.
VisiTrip red window on the front face indicates fault tripping allowing fast diagnosis, resolution, and reclosing loads for easier building management and reduced downtime

Benefits and Features

Downstream circuit is always safe
Class-2 insulation: ensures continuous protection for both operators and unqualified persons.
Insulated terminals (IP20)
Highly durable with robust connections that provide twice the standard tightening torque.
Provide greater continuity of service thanks to VisiTrip.
Double clip for dismounting with comb busbar in place
5 pc- 5/64’’ hex key wrenches with polybag

Standards

IEC 60898 - Relates to Low Voltage Circuit Breakers for use in household and similar
Installations. In the UK traditionally known as miniature circuit breakers
(MCB’s).
IEC 60947-2 Relates to Low Voltage Circuit Breakers for use in industrial and similar
Installations. In the UK traditionally known as moulded case circuit breakers
(MCCB’s) and also air circuit breakers (ACB’s).

Q: What is the differences in the Tripping Curves B, C, and D?

A: Curve B: Tripping: 3 to 5 times the rated current.
Applications: protection of generators, persons, very long cables
Curve C: Tripping: 5 to 10 times the rated current
Applications: protection of circuits and general applications
Curve D: Tripping: 10 to 14 times the rated current
Applications: protection of high surge circuits, welders, transformers and motors

Schneider Electric Acti9 iDT40T Series MCB, 16A, 230V Rated AC Voltage - A9P22616

This miniature circuit breaker, part of the Acti 9 series by Schneider electric, is a reliable solution for distribution applications. With a current rating of 16A and thermal magnetic trip unit technology offers efficient protection against overloads and short circuits. The green premium certified product is designed with Type C tripping characteristics, ensuring optimal performance and safety in electrical installations.

Features & Benefits

• Rated AC voltage of 230V for versatile application
• DIN Rail Mount for easy and secure installation
• 1P+N configuration for enhanced protection
• Screw terminal contacts type for efficient connectivity
• Thermal Magnetic circuit breaker for reliable performance

Applications

• Ideal for automation systems requiring precise protection
• Suitable for electronics applications where overcurrent protection is essential
• Perfect for electrical installations in industrial settings
• Used in mechanical industries for safeguarding equipment

Can it be used in automation systems for protection purposes?

Yes, the Schneider Electric MCB with thermal-magnetic trip unit technology is suitable for automation systems requiring reliable overcurrent protection.

Will it fit securely in DIN rail mount installations?

The 16A circuit breaker with a 1P+N configuration is designed for easy and secure mounting on DIN rail systems.

Is this MCB suitable for use in industrial electrical installations?

Yes, the Acti 9 iDT40T MCB is perfect for industrial settings where protection against overloads and short circuits is crucial.

Approvals

CE, BV, RINA, DNV.

Standards

EN/IEC 60947-2, EN/IEC 60898-1.
