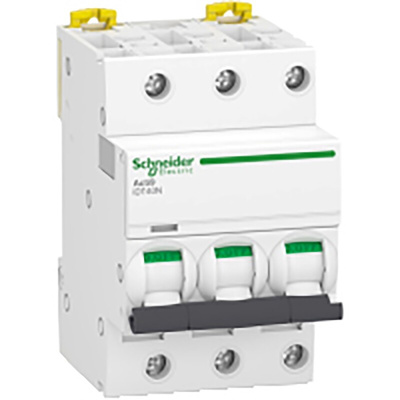

A9P34316, Schneider Electric Acti 9 Acti9 iDT40N MCB, 3P, 16A Curve D, 10 kA Breaking Capacity

Schneider Electric MCBs - Acti9 DT40N

Introducing Schneider Electrics iC60H series of multi-standard circuit breakers which combine circuit protection against short circuit currents and circuit protection against overload currents alongside protecting users against indirect contact with TN and IT neutral systems.

Features & Benefits

• B, C and D curve
• Visisafe green strip indicates and guarantees the safe position of contacts
• VisiTrip red window on the front face indicates fault tripping allowing fast diagnosis, resolution, and re-closing loads for easier building management and reduced downtime

A9P34316 Acti9 iDT40N MCB Miniature Circuit Breaker IP20 / IP40 3 Pole.

• Short product name IDT40N model.


• Distribution applications.


• 3 x Protected poles.


• AC Network.


• Curve code D.


• Isolation to EN/IEC 60947-2.


• NF Quality label.


• [Ue] rated operational voltage 400 V AC 50 Hz.


• With Contact position indicator.


• Toggle control type.


• Trip indicator ON/OFF.


• Clip-On Mounting (DIN rail).


• 6 x 9mm Pitches.


• MCB is White.


• Weight 340 g.


• Can be padlocked.


• IP20 to IEC 60529, IP40 (modular) to IEC 60529.

Breaking.

• 6000 A Icn at 400 V AC 50 Hz conforming to EN/IEC 60898-1.


• 10 kA Icu at 400 V AC 50 Hz conforming to EN/IEC 60947-2.

• Mechanical 20,000 Cycles.


• Electrical 20,000 Cycles.

• Top and Bottom Screw connection.


• Tunnel terminal (top or bottom) 1…10 mm² flexible.


• Tunnel terminal (top or bottom) 1…16 mm² rigid.

• 10...14 x In conforming to EN/IEC 60898-1.


• 12 x In +/- 20 % conforming to EN/IEC 60947-2.

Approvals

CE, BV, RINA, DNV.

Standards

EN/IEC 60947-2, EN/IEC 60898-1.
