CCT15369, Schneider Electric Twilight Switch 230 V ac, 1-Channel, Переключатель

Schneider Electric Adjustable Twilight Switch, 230V AC Supply Voltage, 1NO - Acti 9 Series - CCT15369

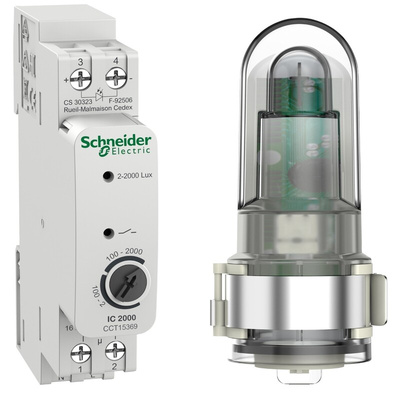

This twilight switch from Schneider Electric is designed to automatically provide light to dark areas. It has a dedicated sensor that detects fading ambient light, enabling remote operation. As it's rated IP55 (ingress protection), the sensor is protected from limited dust contamination and low-pressure water jets making it durable in harsh environments. Thanks to the switch's timer function, it's only active when necessary, which reduces your energy consumption. A rotary knob on its rear lets you adjust the brightness between 2 and 2000lux (illumination) according to your needs.

• Wide operating temperature range between -30°C and +55°C for use in demanding environments
• Standby power consumption of 0.5W (watts) for energy-efficient use
• IP20 (ingress protection) rating indicates the unit is touch-proof
• Time delay of 20 seconds on and 80 seconds off for precise switching to save power

Applications

• Gardens
• Office buildings
• Public parks

Where can I install this twilight switch?

You can install it on a wall using its DIN rail mount fitting, which provides rigidity for a secure hold in demanding environments.

Analogue

Datasheet CCT15369

Brochure - Time, light, and temperature control

Instruction Sheet - CCT15369

Product Environmental Profile
