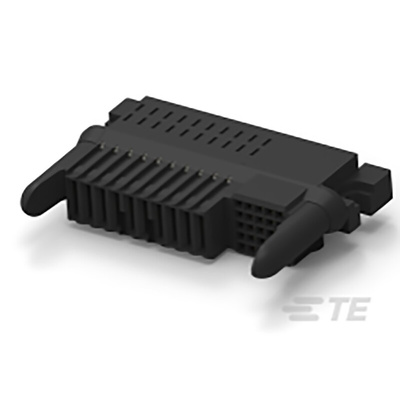

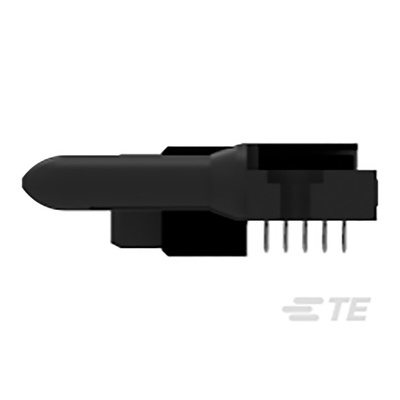

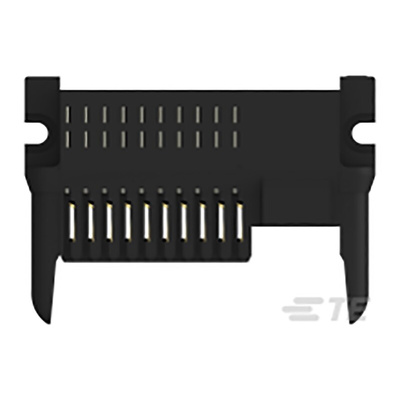

2-1926739-5, TE Connectivity 2.75mm Pitch Backplane Connector, Female, Right Angle, 5 Row, 85 Way, Разъем

This specification covers the requirements for application of MINIPAK HDL power connectors onto printed circuit (pc) boards specifically designed for modular hot-swappable power distribution systems. These connectors consist of right-angle plug assemblies, right-angle receptacle assemblies, and vertical receptacle assemblies. The connectors have precision formed compliant pin contacts that can be used either for press-fit application or wave soldering application. Each connector consists of a housing with power modules containing one row of power (either blade or socket) contacts and signal modules containing 5 rows of signal (either pin or socket) contacts.

Datasheet 2-1926739-5
