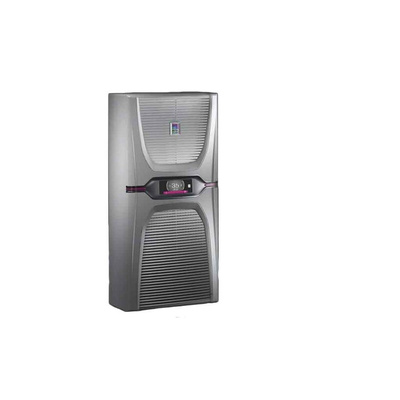

3185830, Rittal Air Conditioning Unit - 1600W, 700 (Internal)m³/h, 110 → 240V ac, Холодильный агрегат

Side air conditioners Blue e+ - Rittal

Thanks to their revolutionary energy efficiency, Rittal Blue e+ air conditioners for enclosures are the most efficient in the world.

The hybrid technology that equips them allows them to achieve energy savings of up to 75% thanks to :
• An integrated heat pipe for passive cooling
• An active refrigerant circuit with an inverter that regulates the components (e.g. compressor, fans) according to the cooling requirements and guarantees less temperature fluctuations in the enclosure. This guarantees a longer service life for the components it integrates.
Blue e+ air conditioners offer maximum flexibility with their multi-voltage capability. They are also very easy to use thanks to their touch screen and intelligent interfaces.
The mounting cut-outs are identical regardless of the mounting position (on-wall, partially recessed, recessed) for 4 cooling output categories.

Material: sheet steel RAL7035 - Degree of protection internal circuit IP55

Temperature range:

Storage temperature: -40 °C...+70 °C
Operating temperature : (environment): -20 °C...+60 °C
Setpoint temperature setting range: +20 °C...+50 °C

Composition of the delivery:

• Nano-coated condenser
• Integral electric condensate evaporation
• Assembly parts
• Fully wired ready for connection (plug-in terminal strip)

Approvals

UL/cUL – UL/cUL-FTTA – TÜV – EAC (3186.9xx à 3189.9xx)
UL/cUL – EAC (3186.6xx à 3189.6xx)

Standards

EN 14511, IEC 60 529

Datasheet 3185830
