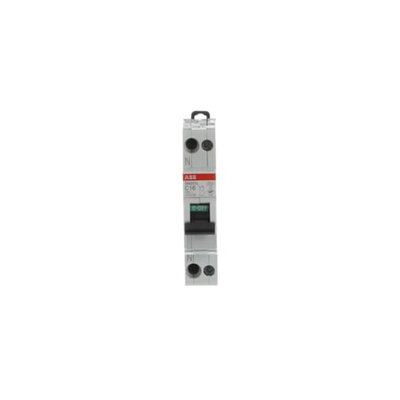

470238, ABB SN201 MCB, 1P+N, 16A Curve C, 230V AC, 4.5 kA Breaking Capacity

ABB MCB, DIN Rail Mounting, 20,000 Cycles Mechanical Endurance Rating - SN201 Series - 470238

Need a reliable safety device to protect your electric circuit? Opt for this MCB from ABB. It monitors the power supply and swiftly cuts it off when it senses a short circuit or current overload. With a type-C characteristic, it trips when it receives between five and ten times its rated current of 16A. This makes it suitable for systems prone to current surges and ensures time isn't wasted by nuisance tripping. Thanks to the wide operating temperature range of -25°C to +55°C, this MCB stands up to the heat of demanding working conditions.

Features & Benefits

• DIN rail mounting for quick installation without the need for tools
• Front-facing contact position indicator for convenient status monitoring
• Mechanical endurance rating of 20,000 cycles for durable performance

Applications

• Data centres
• Aviation engineering
• Warehouses
• Power supply units

How do I reset this MCB?

You can reset this device in a jiffy by simply flipping the toggle switch on the front.

Can I use this device in vibrating conditions?

Yes, it's built to withstand mechanical shock and vibration so you can rely on it to do its job, even if there's jostling and vibration.

Datasheet
