RS PRO Vertical Buna (Float), Polyphenylene Sulphide (Stem) Float Switch, Float, 1m Cable, NO/NC, 240V ac Max, 120V dc

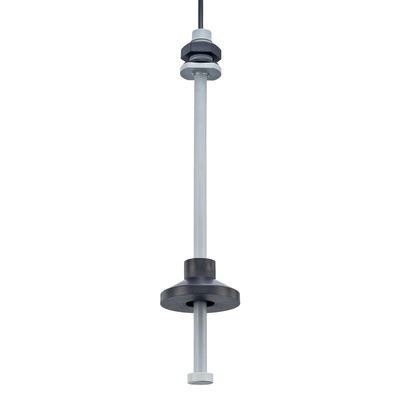

RS PRO Float Switch

The RS PRO vertical mounting float switch has an output of NO/NC with a maximum switching voltage of 240VAC and switching current of 0.6A. It is made up of Buna (Float), Polypropylene Sulphide (Stem) and a gasket material of nitrile. The use of large diameter Buna float is to allow the operation in SG as low as 0.45. The switch is capable of operating in as low as 6mm of water.

Features and Benefits

• Operates in 10mm minimum liquid
• Leadout: 100cm 2 core PVC 7/0.2
• Length versions of 50mm and 200mm
• Operating temperature ranges between -20°C and 75°C
• Cable length : 1m

Applications

• Drip tanks
• Hatch alarms
• Other applications where highly sensitive liquid detection is required
• Series of vertical float switches developed for applications where very low liquid levels need to be detected

Certifications

• ANSI/ESD S20.20: 2014
• BS EN 61340-5-1: 2007

RS PRO Datasheet
