RS PRO External, Vertical Float Switch, Polyphenylene Sulphide, NO/NC, Float, 1m, 240V, 120V

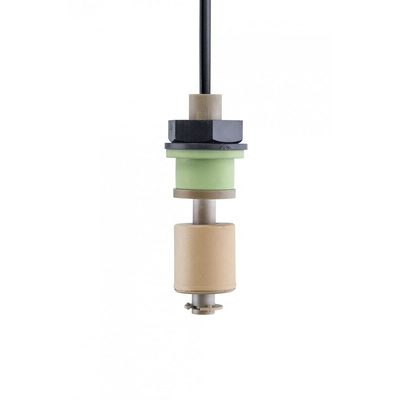

RS PRO Float Switch

The RS PRO external vertical mounting float switch has body material of Polyphenylene sulphide and gasket material of nitrile. It has an output of NO/NC with a maximum switching voltage of 240VAC and switching current of 0.6A. The switch action may be reversed by removing the float, inverting it, then refitting to the stem. These float switches have a switching capacity of 25VA Mounting is in the top or bottom of a tank via a compression seal, so does not require access to the inside of the tank for fitting a compact vertically mounted design with a single switch point.

Features and Benefits

• Leadout: 100cm PVC 2 core 7/0.2
• Operating temperature ranges between -10°C and 120°C
• Cable length: 1m

Applications

• Diesel generators
• Hydraulic oil
• Gearbox oil levels
• Manufactured in a range of plastics to suit most commonly used liquids

Certifications

• ANSI/ESD S20.20: 2014
• BS EN 61340-5-1: 2007
