RS PRO External, Vertical Polyphenylene Sulfide Float Switch, Float, NO/NC, 240V ac Max, 120V dc Max

RS PRO Float Switch

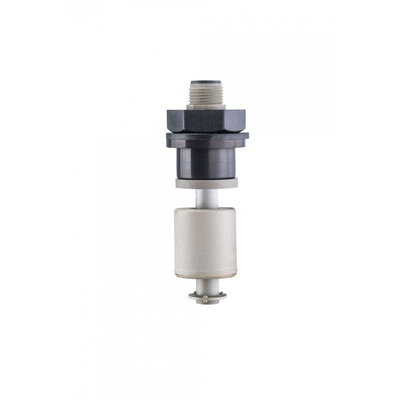

The RS PRO external vertical mounting float switch has body material of Polyphenylene sulphide and gasket material of nitrile. It has an output of NO/NC with a maximum switching voltage of 240VAC and switching current of 0.6A. The switch action may be reversed by removing the float, inverting it, then refitting to the stem. These float switches have 25VA switching capacity. Mounting is in the top or bottom of a tank via a compression seal, so does not require access to the inside of the tank for fitting a compact vertically mounted design with a single switch point.

Features and Benefits

• M12 Connector
• Operating temperature ranges between -20°C and 100°C

Applications

• Diesel generators
• Hydraulic oil
• Gearbox oil levels
• Manufactured in a range of plastics to suit most commonly used liquids

Certifications

• ANSI/ESD S20.20: 2014
• BS EN 61340-5-1: 2007

RS PRO Datasheet
