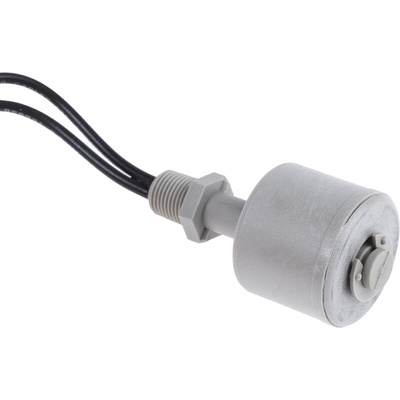

RS PRO Vertical Polyphenylene Sulfide Float Switch, Float, 1m Cable, NO/NC, 240V ac Max, 120V dc Max

RS PRO Float Switch

The RS PRO vertical mounting float switch has an output of NO/NC with a maximum switching voltage of 240VAC and switching current of 0.6A. It is made up of Polyphenylene Sulphide. The mounting is either from the top or bottom of a tank from the inside, so requires access to the inside of the tank. The switch action may be reversed by removing the float, inverting it, then refitting to the stem.

Features and Benefits

• NPT connector: 1/8in
• Compact design

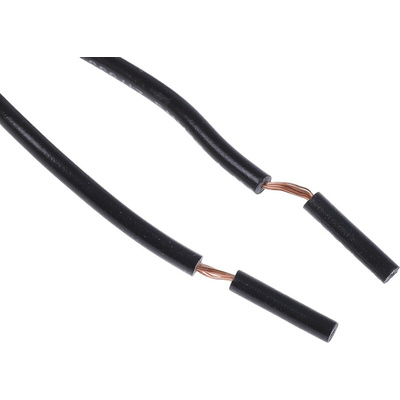

• Cable length: 1m
• Operating temperature ranges between -10°C and 120°C

Applications

• Vending machines
• Printing systems and chemical dosing equipment

Certifications

• ANSI/ESD S20.20: 2014
• BS EN 61340-5-1: 2007

RS PRO Datasheet
