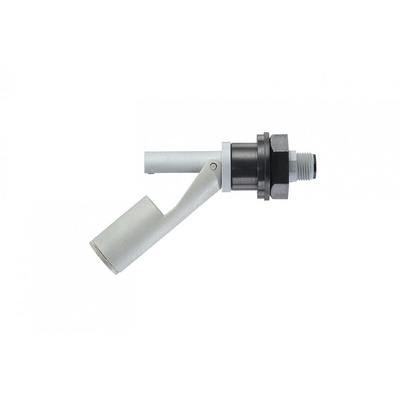

RS PRO Horizontal Polyphenylene Sulfide Float Switch, Float, NO/NC, 240V ac Max, 120V dc Max

RS PRO Float Switch

The RS PRO horizontal mounting float switch has an output of NO/NC with a maximum switching voltage of 240VAC and switching current of 0.6A. It is made up of polypropylene sulphide and has a gasket material of nitrile. The switch action may be reversed by mounting the device with the float able to move upwards away from the body, instead of the more normal downwards direction. It is designed for fitting through a tank wall from the outside, where access to the inside for fitting is not possible. It is manufactured in a choice of plastics, with a choice of gasket materials, to suit most commonly used liquids. The switch action may be reversed by rotating the device through 180°

Features and Benefits

• M12 4-plug connection
• Operating temperature ranges between -10°C and 120°C
• Compression seal fitting

Applications

• Vending machines
• Commercial dishwashers
• Auxiliary tanks on vehicles

Certifications

• ANSI/ESD S20.20: 2014
• BS EN 61340-5-1: 2007

RS PRO Datasheet
