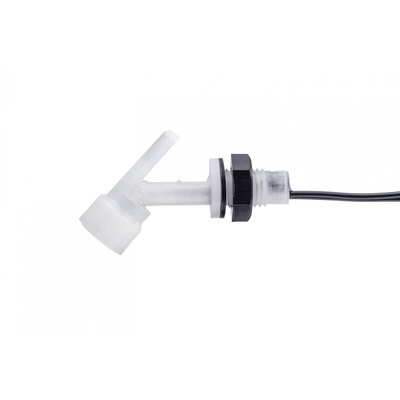

RS PRO Threaded Polypropylene Float Switch, Float, 1m Cable, NO/NC, 240V ac Max, 120V dc Max, Поплавковый выключатель

RS PRO Float Size

The RS PRO thread mounting float size has an output of NO/NC with a maximum switching voltage of 240VAC and switching current of 0.6A. It is made up of polypropylene sulphide and has a gasket material of nitrile. This device is particularly suitable for detecting low levels of liquids in the bottom of tanks and containers, and for lower SG liquids. This float switch series is designed as a compact internal fitting device, with a wide range of options, making it ideal for size sensitive applications. Mounting of this series requires access to the inside of the tank. It is manufactured in a variety of materials with a choice of gasket materials, to suit most commonly used liquids. The switch action may be reversed by rotating the device through 180°.

Features and Benefits

• Compact design
• Very low level sensing
• Suitable for low specific gravity liquids
• Leadout: 100cm PVC 16/0.2
• Operating temperature ranges between -20°C and 100°C
• Cable length: 1m

Applications

• Vending machines
• Commercial washing machines
• Evaporator units

Certifications

• ANSI/ESD S20.20: 2014
• BS EN 61340-5-1: 2007

RS PRO Datasheet
