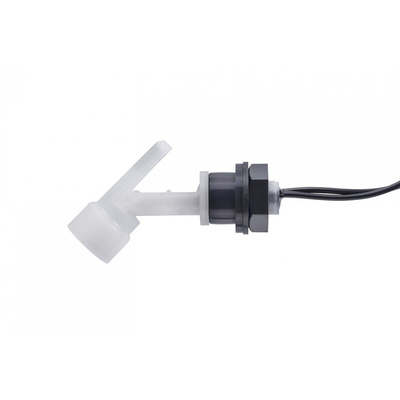

RS PRO External Float Switch, Polypropylene, NO/NC, Float, 1m, 240V, 120V

RS PRO Float Switch

The RS PRO external mounting float switch has an output of NO/NC with a maximum switching voltage of 240VAC and switching current of 0.6A. It is made of polypropylene and has a nitrile gasket. The switch action may be reversed by mounting the device with the float able to move upwards away from the body, instead of the more normal downwards direction. This float switch series is designed for fitting through a tank wall from the outside, where access to the inside for fitting is not possible.

Features and Benefits

• Suitable for low specific gravity liquids
• Very low level sensing
• Class leading compact design
• Cable length: 1m
• Leadout: 100cm PVC 16/0.2
• Compression seal fitting
• Operating temperature ranges between -10°C and 120°C

Applications

• Suitable for detecting low levels of liquids in the bottom of tanks and containers, and for lower SG liquids.
• Vending machines
• Commercial dishwashers
• Auxiliary tanks on vehicles

Certifications

• ANSI/ESD S20.20: 2014
• BS EN 61340-5-1: 2007
