RS PRO External High Density Polyethylene Float Switch, Float, 5m Cable, NC, 250V ac Max, 110V dc Max

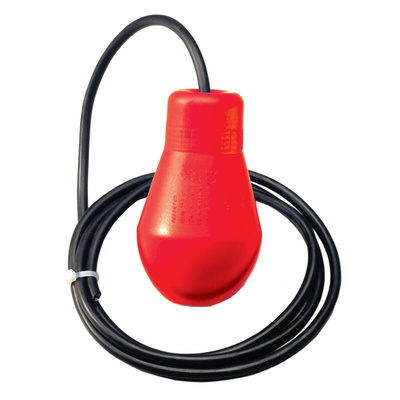

RS PRO Float Switch

The RS PRO external mounting float switch has an output of NC with a maximum switching voltage of 250VAC and switching current of 10A It is made up of High-Density Polyethylene. This float switch is suitable for use in water, industrial wastewater and sewage that can have wide variations of temperature. This small design of the switch is for use in more confined spaces, where there is not enough room for larger types. The rounded body design and floating attitude prevent the accumulation of solids on the body. The switch has additional internal ballast, to bring the centre of gravity and rotation close to the cable entry point. The switching element is a self-cleaning type, that makes the complete switch insensitive to humidity and condensation, allowing this type to operate in widely fluctuating temperatures. The switch contacts are rated at 10 Amp resistive and has 10bar maximum pressure.

Features and Benefits

• Shape avoids ragging in sewer systems
• Use in sewer and industrial waste water
• Unaffected by suspended solids
• Supplied, as standard, with 5 metres of cable and adjustable counterweight
• Operates in turbulent fluids
• Cable length: 5m
• Operating temperature ranges between 0°C and 55°C

Applications

• Suitable for smaller tanks and restricted spaces

Certifications

• ANSI/ESD S20.20: 2014
• BS EN 61340-5-1: 2007

RS PRO Datasheet
