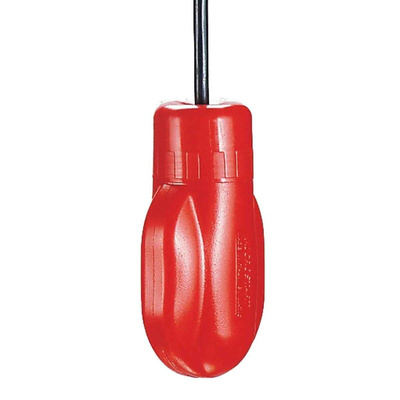

RS PRO Float Switch
The RS PRO external mounting float switch has an output of NO/NC with a maximum switching voltage of 250VAC and switching current of 10A. It is made up of HDPE. The switching element is a microswitch, activated by a moving stainless steel ball and having an electrical life of 200,000 operations. The Non-hygroscopic closed-cell expanded polyurethane is injected around the switch housing within the outer casing, hermetically sealing the unit. It is capable of working down to 100 metres depth in water. This series of cable end float switches are designed for controlling levels in large tanks, cisterns or reservoirs and can be directly installed on submersible pumps. The casing is manufactured in a blow moulded Polyethylene (HDPE), with 5m PVC cable with protective earth conductor as standard. It has a maximum pressure of 10bar.
Features and Benefits
• Direct switching: 10A
• Use in non-turbulent fluids
• Switch Output: NO/NC
• Operating temperature ranges between 0°C and 45°C
Applications
• For smaller tanks and restricted spaces
Certifications
• ANSI/ESD S20.20: 2014
• BS EN 61340-5-1: 2007
RS PRO Datasheet
