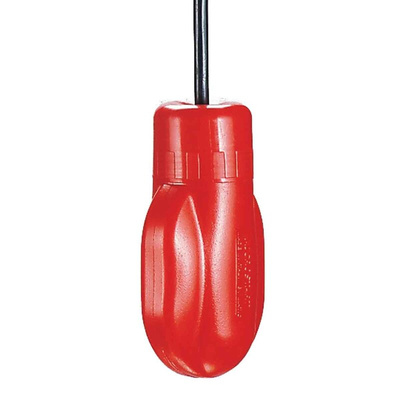

RS PRO External Float Switch, HDPE, NC, Float, 5m, 250V, 24V

RS PRO Float Switch

The RS PRO external mounting float switch has an output of NC with a maximum switching voltage of 250VAC and switching current of 0.6A. It is made up of HDPE. The switching element is a micro switch, activated by a moving stainless steel ball and having an electrical life of 200,000 operations. The Non-hygroscopic closed-cell expanded polyurethane is injected around the switch housing within the outer casing, hermetically sealing the unit. It is capable of working down to 100 metres depth in water. This series of cable end float switches are designed for controlling levels in large tanks, cisterns or reservoirs and can be directly installed on submersible pumps. It has 10bar maximum pressure.

Features and Benefits

• Use in non-turbulent fluids
• Cable length: 5m
• Operating temperature ranges between 0°C and 45°C

Applications

• Larger tanks
• Cisterns and reservoir

Certifications

• ANSI/ESD S20.20: 2014
• BS EN 61340-5-1: 2007

RS PRO Datasheet
