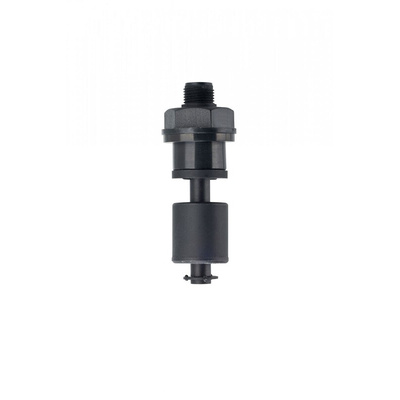

RS PRO External, Vertical Nylon Float Switch, Float, NO/NC, 240V ac Max, 120V dc Max

RS PRO Float Switch

The RS PRO external vertical mounting float switch has an output of NO/NC with a maximum switching voltage of 240VAC and switching current of 0.6A. It is made up of nylon and has gasket material of nitrile. The switch action may be reversed by removing the float, inverting it, then refitting to the stem. This float switch has 25VA switching capacity Mounting is in the top or bottom of a tank via a compression seal, so does not require access to the inside of the tank for fitting a compact vertically mounted design with a single switch point.

Features and Benefits

• External mount via compression seal
• Compact design with small diameter float
• M12 connector
• Operating temperature ranges between -20°C and 75°C
• Switch Output: NO/NC

Applications

• Diesel generators
• Hydraulic oil
• Gearbox oil levels
• Manufactured in a range of plastics to suit most commonly used liquids

Certifications

• ANSI/ESD S20.20: 2014
• BS EN 61340-5-1: 2007

RS PRO Datasheet
