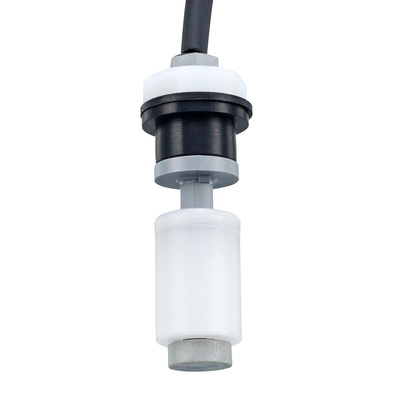

RS PRO External, Vertical Polypropylene Float Switch, Float, 1m Cable, NO/NC, 240V ac Max, 120V dc Max

RS PRO Float Switch

The RS PRO external vertical mounting float switch is made up of polypropylene and gasket material of nitrile It has an output of NO/NC with a maximum switching voltage of 240VAC and switching current of 0.6A. The switch action may be reversed by removing the float, inverting it, then refitting to the stem. This float switch has 25VA switching capacity. Mounting is in the top or bottom of a tank through a compression seal, so does not require access to the inside of the tank for fitting a compact vertically mounted design with a single switch point.

Features and Benefits

• External mount via compression seal
• Compact design with small diameter float
• Leadout : 100cm PVC 2 core 7/0.2
• Operating temperature ranges between -20°C and 100°C
• Cable length: 1m

Applications

• Diesel generators
• Hydraulic oil
• Gearbox oil levels
• Manufactured in a range of plastics to suit most commonly used liquids

Certifications

• ANSI/ESD S20.20: 2014
• BS EN 61340-5-1: 2007
