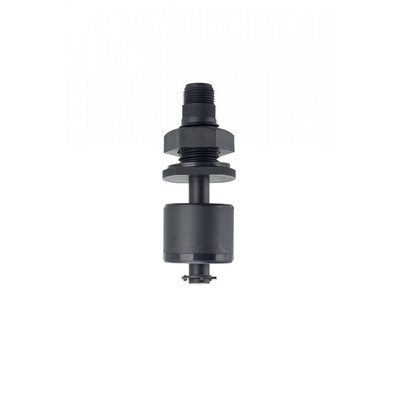

RS PRO Vertical Nylon Float Switch, Float, NO/NC, 240V ac Max, 120V dc Max

RS PRO Float Switch

The RS PRO vertical mounting float switch has an output of NO/NC with a maximum switching voltage of 240VAC and switching current of 0.6A. It is made up of nylon and gasket material of nitrile. This float switch is compact, vertically mounted devices with a single switch point. Mounting is either from the top or bottom of a tank from the inside, so requires access to the inside of the tank. These have M12 circular connectors for electrical connection. It is manufactured in 3 different plastics, to suit most commonly used liquids. The switch action may be reversed by removing the float, inverting it, then refitting to the stem.

Features and Benefits

• Electrical connection via M12 4-pin connector
• Operating temperature ranges between -20°C and 75°C

Applications

• Vending machines
• Printing systems and chemical dosing equipment

Certifications

• ANSI/ESD S20.20: 2014
• BS EN 61340-5-1: 2007
