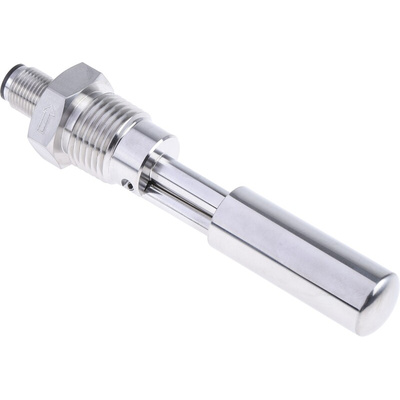

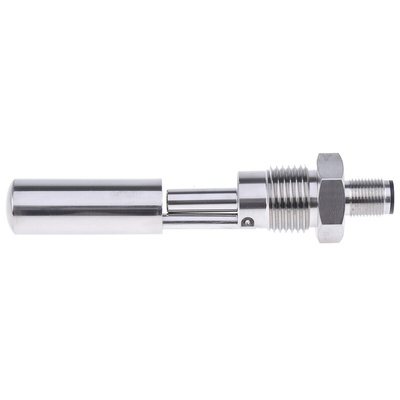

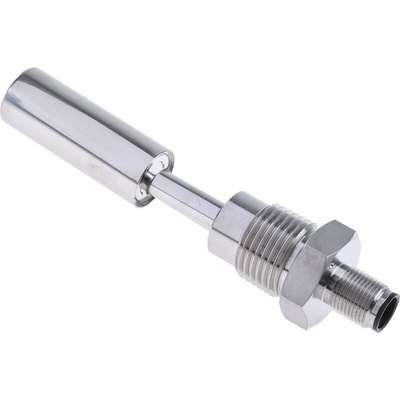

RS PRO External, Horizontal 304 Stainless Steel (Stem), 316 Stainless Steel (Float) Float Switch, Float, NO/NC, 300V ac

RS PRO External Horizontal Float Switch, 304 Stainless Steel (Stem), 316 Stainless Steel (Float), NO/NC, 300 V

Use this RS PRO float switch to monitor liquid levels in medical or food industries. Its stainless steel composition makes it highly resistant to temperature changes and abrasive substances, so you can safely choose it for chemical tanks.
The action of the float can be easily reversed by mounting it in the opposite direction so you can monitor both low and high levels of liquid. For improved safety and to reduce the risk of exposure to harmful substances, the switch can be fitted from the outside of a tank. Its compact design takes up very little room, which makes the unit suitable to use where space is restricted.
This durable and reliable product is ideal for hygienic and process control applications. It's Restriction of Hazardous Substances (RoHS) compliant, so it contains only negligible amounts of any materials that could be harmful to you.

Features and Benefits

• Stem made of 304 stainless steel
• Float made of 316 stainless steel
• Current rating of 500 mA
• Float device type
• Maximum voltage of 300 V AC/DC
• Maximum operating temperature of +120°C
• Maximum pressure of 5 bar
• External, horizontal mounting
• NO/NC (normally-open normally-closed) switch output

RS PRO Datasheet
