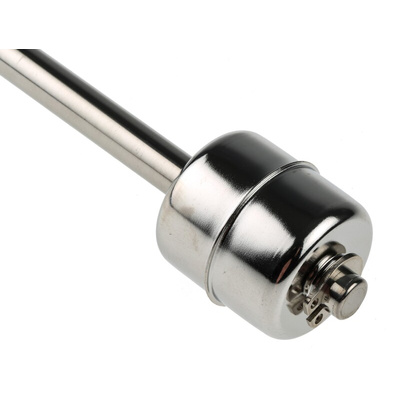

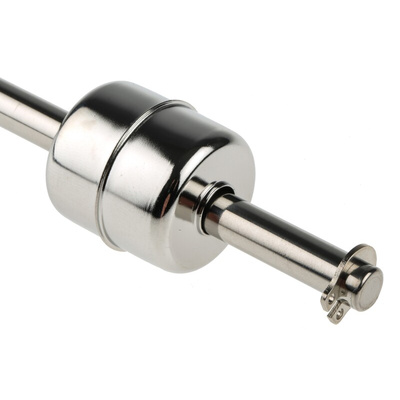

RS PRO Internal Stainless Steel Float Switch, Float, 1m Cable, NO/NC, 250V ac Max, 120V dc Max

RS PRO Internal Float Switch, Stainless Steel, NO/NC, 1 m, 250 V, 120 V

This float switch from RS PRO is for monitoring the level of fluid in a tank. It gives an accurate indication of how full or empty a tank is and sends a signal to a device, such as a pump, to open or close the supply. You can use a float switch like this for dosing applications.
It's manufactured from high-quality stainless steel, so it's extremely resistant to corrosive substances and guaranteed to last a long time, even in the presence of harsh chemicals. The switch is able to detect both high and low liquid levels, which means you can use it to indicate when a tank should be filled and know when to stop the process.
A product like this is suitable for medical and pharmaceutical applications. It's Restriction of Hazardous Substances (RoHS) compliant, so it contains only trace amounts of any harmful materials.

Features and Benefits

• Body made of stainless steel

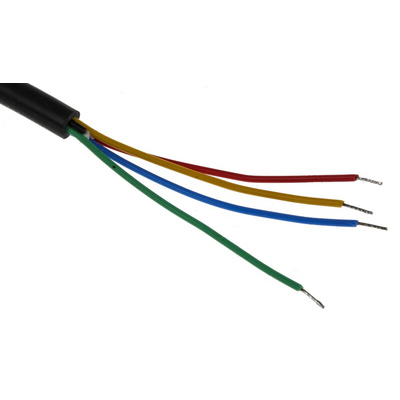

• Cable length of 1 m
• Current rating of 600 mA
• Float device type
• Maximum voltage of 250 V AC and 120 V DC
• Maximum operating temperature +135°C
• Maximum pressure of 10 bar
• Internal mounting type
• NO/NC (normally-open/normally-closed) switch output

RS PRO Datasheet
