MMS3- Survey BLD9800-S, Protimeter BLD9800-S Moisture Meter, 99 % RH Max, LCD Display, Battery-Powered

PROTIMETER – MMS3 SURVEY BLD9800-S

Protimeter MMS3 Survey BLD9800-S, IP65 compact wall mountable data-logging device, RH Relative humidity, temperature and moisture content with Bluetooth communication.

Product Details
The attachments aren’t just included, they’re built in.

The Protimeter MMS3 is the industry’s most advanced all-in-one moisture meter. Its ergonomic, 4-in-1 design allows one-handed operation to measure moisture on and below the surface as well as ambient air humidity. An infrared thermometer which calculates the difference between dew point and surface temperature, is just one of the many advances designed to assess moisture in new/refurbishing projects and help diagnose moisture-related problems in existing buildings.

- Built-in pin probes
- Non-invasive moisture detection up to 19mm below surface
- Simple to use 2-button operation
- Easy to read LED and LCD Display
- Calibration check device included to quickly check functionality

Materials this moisture meter can be used on?
- Wood
- Drywall
- Building Materials
- Concrete
- Fiberglass Boat Hulls

Typical Applications:
- Concrete Floors
- Wood Floors
- Building Survey
- Building Construction
- HVAC Commissioning
- Home Inspection
- Flood Damage Restoration
- Industrial Coatings

Specifications:
- Moisture measurement range: Pin (% WME) 8% to 99, readings over 30% are relative Non-invasive (RF) up to 19 mm deep 60 to 1000 (relative)
- Temperature probe range: -10°C to 50°C
- HygroStick data (nominal): 30% to 40% RH (3% RH) at 68F (20°C), 41% to 98% RH (2%) at 68°F (20°C), Range 32°F to 122°F (0°C to 50°C) 0.6°F (0.3°C)
- Quickstick Data (nominal): 0% to 10% RH, 3% RH at 68°F (20°C), 10% to 90% RH, 2% RH at 68°F (20°C), 90% to 100% RH, 3% RH at 68°F (20°C), Range 32°F to 122°F (0°C to 50°C) 0.6°F (0.3°C) Nominal response 30% to 90% and back to 30% RH in 45 seconds @ 68°F (20°C)
- Data Storage: up to 10,000 results with date and time stamp from all instrument functions
- Gross weight: meter with battery 309gms
- Dimensions (L x W x H): 190.5mm x 94mm x 56mm
- Maximum needle depth: 10mm
- Display: colour LCD
- Batteries (included) – 2 x AA
- Warranty: 24 months on mechanical or manufacturing defects. Does not include part wearing or accessories

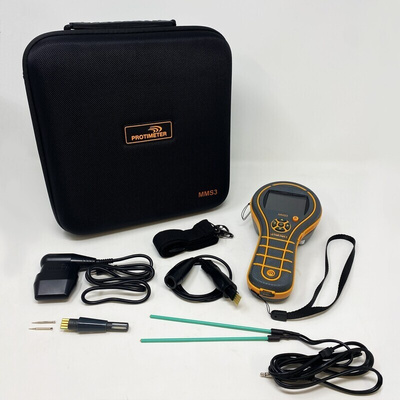

Included in the package – MMS3, Quikstick short, heavy duty moisture probe, Hygrostick, Hygro/Quik extension lead, 127mm deep wall probe, calibration checker, Bluetooth with free APP, 2 x AA batteries, carry pouch and pre-formed case, quick start guide and manual.

Datasheet BLD8800-S

BLD8800-S Instruction Sheet

MMS3 Protimeter Connect App
