Protimeter BLD7750 Handheld Hygrometer, ±2 % Accuracy, 98%RH Max, Термогигрометр

PROTIMETER - HYGROMASTER 2 & BLE

Protimeter BLD7750 HygroMaster & Protimeter BLE BLD2025, IP65 Compact wall mountable data-logging device, RH Relative humidity, temperature and moisture content with Bluetooth communication
Product Details

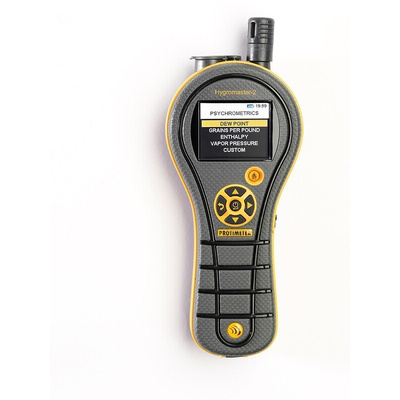

Protimeter Hygromaster 2 hand held Thermo-Hygrometer
The Protimeter Hygromaster 2 is the latest in hand held hygrometry technology. Features outstanding performance with a simple and easy to use interface with multiple Psychometric calculations and a non-contact surface IR temperature probe.
- Infrared non-contact surface temperature with laser pointer
- Concrete and concrete floor moisture measurement (ASTM-F2170 Standard)
- Fast temperature and humidity response
- Highly accurate
- Simple to use interface with colour display
- Replaceable humidity and temperature sensor
- Psychrometric calculations
- Data logging

Materials this moisture meter can be used on?
- Wood
- Building Materials
- Concrete

Typical Applications:
- Concrete Floors
- Wood Floors
- Building Survey
- Building Construction
- HVAC Commissioning
- Home Inspection
- Flood Damage Restoration
- Industrial Coatings

Specification: (HygroMaster 2 BLD7750)
Infrared Surface Temperature Range
IR Based – With 12:1 (D:S) Ratio
Range -4°F to 176°F (-20°C to 80°C)
Accuracy ±3.6°F (±2°C)
Hygrostick Data (Nominal)
30% to 40% RH (±3% RH) at 68ºF (20ºC).
41% to 98% RH (±2%) at 68ºF (20ºC).
Range 32°F to 122°F (0°C to 50°C) ±0.6°F (±0.3°C)
Gross Weight - 227 gms
Dimensions (LxWxH) - 178 mm X 81 mm X 38 mm
Display - Colour LCD
Batteries (Included) - 9 V
Warranty - 24 months on mechanical or manufacturing defects. Does not include wearing part or accessories

Data Storage:
Store up to 8,000 results with date and time stamp from all instrument functions with the push of a button. Store 6100 results with automatic logging.

Protimeter BLE – BLD2025

Protimeter BLE BLD2025, IP65 Compact data-logging device, RH Relative humidity, temperature and moisture content with Bluetooth communication
A compact device that offers precise measurements and logs (RH) relative humidity, room temperature and moisture content WME (WME – water moisture equilibrium / content) in wood and building material when it is inserted into the material via two screws which are included in the pack. The BLE unit is IP65, dust and waterproof. A simple Bluetooth pairing to your device allows data capture of up to 1000 readings at customised intervals that can be viewed remotely through the Protimeter BLE App. IOS and Android app available for free download
Materials this moisture meter can be used on?
- Plasterboard
- Soft wood
- Hard wood
- Brick
- Lime Render

Typical Applications:
- Long and short-term monitoring of a building’s moisture health
- Early warning of potential mould problems
- Monitor environmental conditions over the long-term to help protect buildings of artefacts
- Measure moisture content in a range of building materials, including wood and drywall

Specifications:
Dimensions: (H x W x D) 53 mm x 67 mm x 23 mm
Product Weight: 0.06 kg
Storage Conditions: Temperature: -40°C to +50°C
Operating Conditions: Temperature: -20°C to +50°C / Humidity: 0-100% (non-condensating)
Environmental Protection: IP65 (Dust and Water Jet Protected)
Relative Humidity: Humidity: 0-100% (non-condensating) / Accuracy: 20-80% RH +/-2%
Moisture Content: Accuracy: 8-30% WME +/-1% (+/-3% accuracy outside this range)
RF: Low-powered Bluetooth (BLE) - Bluetooth range up to 10M depending on surrounding building structures
Power: Battery CR2450 (replaceable) / Battery life depends on logging interval set within the app.
Protimeter BLE App: Available for free download from the Apple App Store and Google Play.

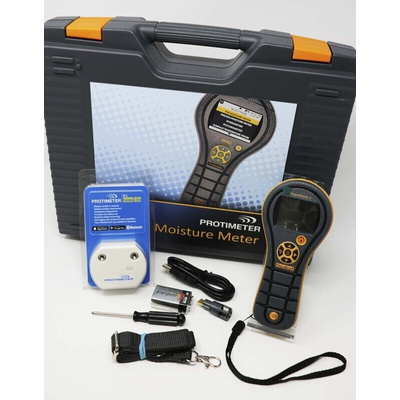

Included in the package – Hygromaster 2, Hygostick sensor, BLE data-logger device in a hard protective case.

Datasheet BLD7750

BLD7750 Instruction Sheet
