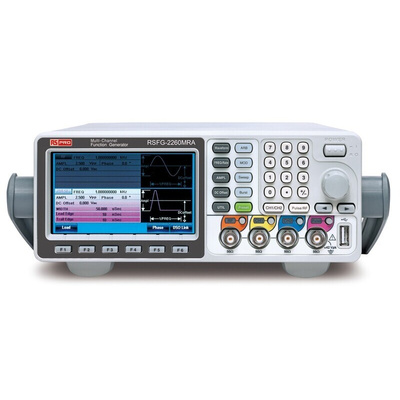

RS PRO RSFG-2260MRA Function Generator, 25MHz Max, FM Modulation

RS PRO 60MHz Dual Channel Arbitrary Function Generator with Pulse Generator, Modulation, 320MHz RF Signal Generator, Power Amplifier

Introducing the RSFG-2000 series of AFG (arbitrary function generators) with pulse generator from RS PRO, a selection of robust and professional function generators offering a range of outputs including sine, square and triangle. Whatever your needs the RSFG-2000 series from RS PRO has you covered, with devices ranging from basic single channel AFG with pulse generator models to more technical and advanced five-channel models with many offering various modulation methods such as AM/FM/PM/FSK/PWM, Sweep, Burst, Trigger, 150 MHz Frequency Counter. The AFG of the RSFG-2000 series in collaboration with AWES (Arbitrary Waveform Editing Software) allows users to easily and quickly edit arbitrary waveforms, with 66 built-in waveforms allowing users to edit arbitrary waveforms and to output the whole segment or divided segments.

Each model of the RSFG-2000 series features a built-in pulse generator with an output frequency that reaches 25 MHz. Users can set pulse width, duty cycle, rise edge time, and fall edge time to support trigger signal. Furthermore, each model also features a clear and user-friendly interface with a 4.3 inch TFT colour display that can be easily navigated by users of any level of expertise.

RF Signal Generator (1919724 & 1919727)

The RF signal generator feature included in models 1919724 & 1919727 can be applied as a high frequency arbitrary waveform generator, simulated signals of analog or digital broadcast stations or carrier signals of local oscillator. It is also compatible with modulation methods such as AM/FM/PM/FSK/PWM/PSK/ASK.

Power Amplifier (1919723 & 1919727)

The low frequency 20W/20dB power amplifier found in models 1919723 & 1919727 has a bandwidth of DC ∼ 100KHz and less than 0.1% distortion and is ideal for connecting a speaker for a wide range of physics experiments.

Features and benefits

Maximum Five Output Channels
- 2 Equivalent Performance Arbitrary Channels Frequency : 1 Hz ∼ 10/20/30/60MHz
- RF Channel Frequency (FG/ARB/MOD) : 160/320MHz
- Pulse Generator Frequency : 25MHz
- Power Amplifier: Low Frequency, 5Hz∼100kHz, 20dB/20W(limited by current setting)
True Point by Point Output Arbitrary Waveform Function : 200MSa/s, 100MHz Repetition Rate, 14-bit Resolution,16k Points Memory Depth
Earth Ground Isolation Design Among I/O Terminals and Instrument Chassis
Frequency Counter : 150MHz, 8 bit Frequency Resolution
AM/FM/PM/ASK/FSK/PSK/SUM/PWM Modulation
Built-in medical and automotive electronic waveforms
USB Host/USB Device/LAN (RSFG-22XX only)
4.3 Inch TFT Colour Display

Are test leads supplied?

Yes, this model is supplied with two BNC-Alligator test leads.
