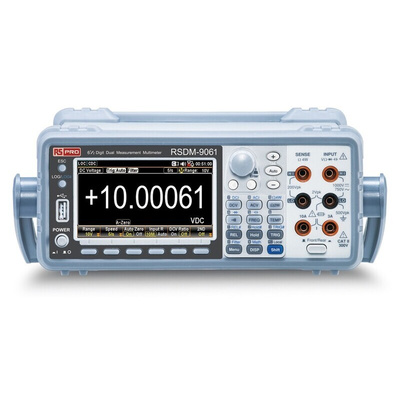

RS PRO RSDM-9061 Bench Digital Multimeter, True RMS - UKAS Calibrated

RS PRO Benchtop 6 Digit Dual Measurement Multimeter

Introducing the RS PRO RSDM-9061 benchtop 6 digit dual measurement multimeter, a highly accurate and professional benchtop digital multimeter ideal for the measurement of circuit parameters such as voltage, current and resistance. The sturdy design of the RSDM-9061 ensures a durable and reliable meter that is ideal for permanent fixture on any workbench or system rack.

The RSDM-9061 digital multimeter offers high precision DC voltage accuracy, fast sampling rate, 12 measurement functions, 6 mathematical functions (dB/dBm/Compare/ MX+B/Percent and 1/X) as well as a variety of communications interfaces (USB device/host, RS-232C, LAN, digital I/O and optional GPIB) offering excellent measurement capabilities, higher speed and accuracy. Furthermore, the RSDM-9061 from RS PRO features a clear and user friendly 4.3" TFT graphic LCD display, ensuring ease of use regardless of your level of experience.

Features and Benefits:

6 Digit Display: 1,200,000 Counts
A clear and user friendly 4.3" TFT Graphic LCD display
DCV Basic Accuracy: 0.0035%(RSDM-9061)/0.0075%(RSDM-9060)
12 Measurement Functions: DCV, ACV, DCI, ACI, 2-wire and 4-wire Resistance, Frequency, Period, Diode, Continuity, Temperature and Capacitance
Sampling Rate up to 10k SPS
Dual Measurements to Perform Two Selected Measurement Simultaneously
Offer Graphical Capabilities Including Histogram, Bar Meter and Trend
Temperature Measurement Support RTD, Thermistor as Well as Thermocouple
Standard Interface: USB Host/Device, RS-232C,LAN,Digital I/O
Optional Interface: GPIB

Applications:

Benchtop digital multimeters are a type of measurement device commonly used by engineers and can offer a wide range of circuit parameter measurements including current, voltage, resistance and more. Available in a variety of shapes and sizes, benchtop multimeters offer higher accuracy and advanced functionalities compared to hand held multimeters, making them ideal for use in a wide range of areas including:

Production test and quality inspection
Educational laboratory experiments
Repair and service
Circuit testing and debug
Product design

FAQs

What measurement functions are achievable?

The RSDM-9061 offers 12 measurement functions including:

DC voltage/current
AC voltage/current
2-wire/4-wire resistance
Frequency
Period
Diode
Continuity beeper
Temperature
Capacitance

What is included?

Safety Instructions x 1
Power cord x 1
USB cable GTL-246 x 1
Test lead GTL-207A x 1
CD x 1 (including the complete user manual, upgrade program and PC software, DMM-Viewer2)

Does this include a continuity feature?

Yes, this model offers a continuity function.

Does this require a battery?

No, the RSDM-9061 is powered via the power chord (supplied).

RS PRO Datasheet
