RS PRO RSDM-9060 Bench Digital Multimeter, True RMS - RS Calibrated, Мультиметр

RS PRO Benchtop 6 Digit Dual Measurement Multimeter RSDM-9060

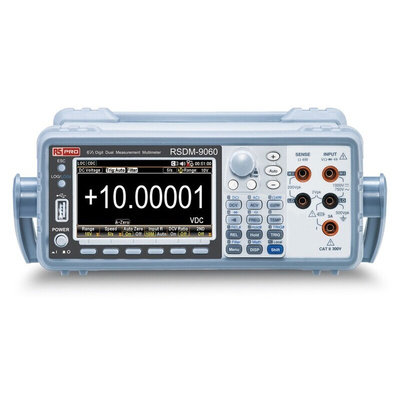

Introducing the RS PRO RSDM-9060 benchtop 6 digit dual measurement multimeter, a highly accurate and professional benchtop digital multimeter ideal for the measurement of circuit parameters such as voltage, current and resistance. The sturdy design of the RSDM-9060 ensures a durable and reliable meter that is ideal for permanent fixture on any workbench or system rack.

The RSDM-9060 digital multimeter offers high precision DC voltage accuracy, fast sampling rate, 12 measurement functions, 6 mathematical functions (dB/dBm/Compare/ MX+B/Percent and 1/X) as well as a variety of communications interfaces (USB device/host, RS-232C, LAN, digital I/O and optional GPIB) offering excellent measurement capabilities, higher speed and accuracy. Furthermore, the RSDM-9060 from RS PRO features a clear and user friendly 4.3" TFT graphic LCD display, ensuring ease of use regardless of your level of experience.

Features and benefits

• 6 Digit Display: 1,200,000 Counts
• A clear and user friendly 4.3" TFT Graphic LCD display
• DCV Basic Accuracy: 0.0075%
• 12 Measurement Functions: DCV, ACV, DCI, ACI, 2-wire and 4-wire Resistance, Frequency, Period, Diode, Continuity, Temperature and Capacitance
• Dual Measurements to Perform Two Selected Measurement Simultaneously
• Offer Graphical Capabilities Including Histogram, Bar Meter and Trend
• Temperature Measurement Support RTD, Thermistor as Well as Thermocouple
• Standard Interface: USB Host/Device, RS-232C,LAN,Digital I/O
• Optional Interface: GPIB

Application

Benchtop digital multimeters are a type of measurement device commonly used by engineers and can offer a wide range of circuit parameter measurements including current, voltage, resistance and more. Available in a variety of shapes and sizes, benchtop multimeters offer higher accuracy and advanced functionalities compared to hand held multimeters, making them ideal for use in a wide range of areas including:

• Production test and quality inspection
• Educational laboratory experiments
• Repair and service
• Circuit testing and debug
• Product design

FAQs

What measurement functions are achievable?

The RSDM-9060 offers 12 measurement functions including:

• DC voltage/current
• AC voltage/current
• 2-wire/4-wire resistance
• Frequency
• Period
• Diode
• Continuity beeper
• Temperature
• Capacitance

What is included?

• Safety Instructions x 1
• Power cord x 1
• USB cable GTL-246 x 1
• Test lead GTL-207A x 1
• CD x 1 (including the complete user manual, upgrade program and PC software, DMM-Viewer2)

Does this include a continuity feature?

Yes, this model offers a continuity function.

Does this require a battery?

No, the RSDM-9060 is powered via the power chord (supplied).
