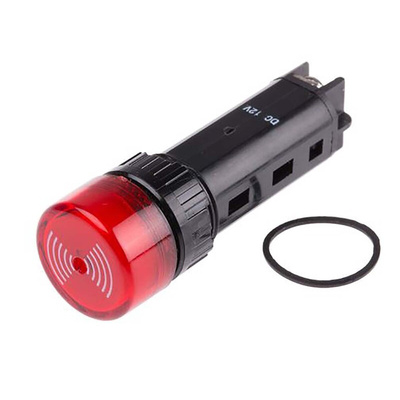

RS PRO Panel Mount Buzzer, 12 V dc, IP40, DC

RS PRO Indicator Buzzer, Flicker Annunciator, 12V DC

If you need a simple and effective buzzer, this one from RS PRO could be just the thing. It has a sound intensity of 80 dB at 0.1 metres, so it's easy to hear over most ambient noise.
The buzzer's housing is made of polycarbonate material, which offers a good level of strength and resistance to wear, so it will last for a long time. This product also has an IP40 (Ingress Protection) rating, meaning it's protected from wires and small tools greater than 1 millimetre.
A buzzer like this one is often used on aircraft and boat instrument panels. It has been stringently tested for quality and safety by engineers.

Features and Benefits

• Compact audio & visual indicator


• Diameter of 16 mm


• Maximum decibels of 80 dB at 0.1 metre distance


• Panel mounting


• Screw Terminals


• Supply voltage of 12V DC


• Flicker intermittent buzzer sound


• Operating temperature range of -20°C to +55°C

Contents

• 1 x Indicator Buzzer


• 1 x Nut


• 1 x O-Ring

Variants

• IL-MB-16-FI-4-AD-77 – RS stock no: 191-9785


• IL-MB-16-FI-3-AD-77– RS stock no: 191-9786

Applications

• Electrical equipment


• Textile machines


• Printers


• Ships


• Mining machines

RS PRO Datasheet
