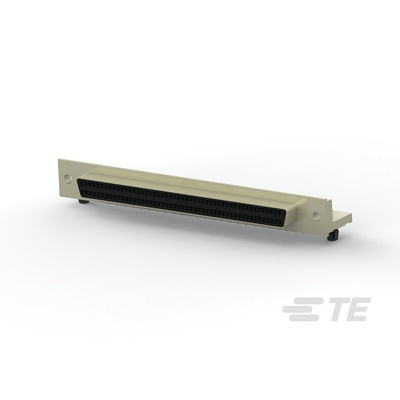

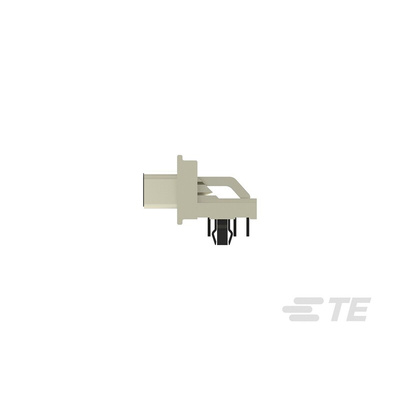

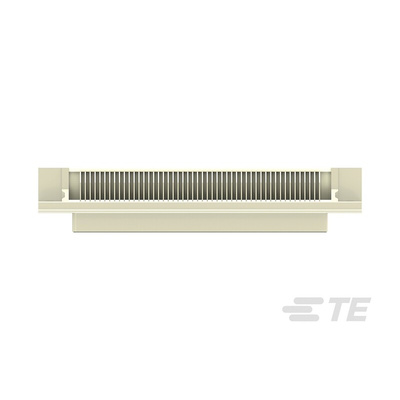

5787170-9, TE Connectivity Amplimite 0.50 100 Way Right Angle Through Hole D-sub Connector Socket, 1.27mm Pitch, Разъем

5787170-9

Shell Type=Full Metal Shell, Connector Style=Receptacle, Connector System=Cable-to-Board, Row-to-Row Spacing=.1 in,2.54 mm, Profile=Standard, Number of Positions=100, Number of Rows=2, PCB Mount Orientation=Right Angle, Post Plating Material=Tin over Nickel, Post Size=, Contact Base Material=Phosphor Bronze, Contact Current Rating (Max)=1 A, Contact Mating Area Plating Material=Gold Flash over Palladium Nickel,Gold, Termination Method to Printed Circuit Board=Through Hole - Solder, Termination Post Length=2.54 mm, PCB Mount Alignment=Without, PCB Mounting Style=Through Hole - Solder, PCB Mount Retention=With, PCB Mount Retention Type=Boardlock, Mating Connector Lock=Without, Centerline (Pitch)=1.27 mm, Housing Color=Black, PCB Thickness (Recommended)=1.57 mm, Operating Temperature Range=-55 – 105 °C, Circuit Application=Signal, Approved Standards=UL E28476, UL Flammability Rating=UL 94V-0, Packaging Quantity=6

Datasheet
