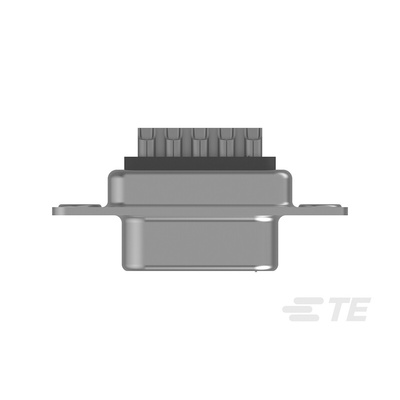

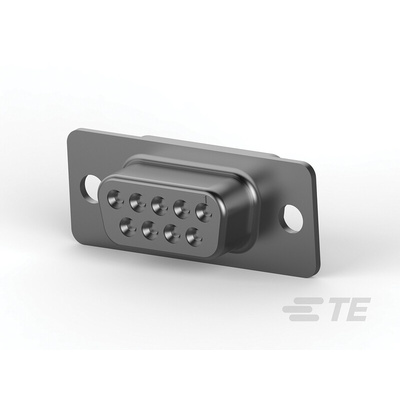

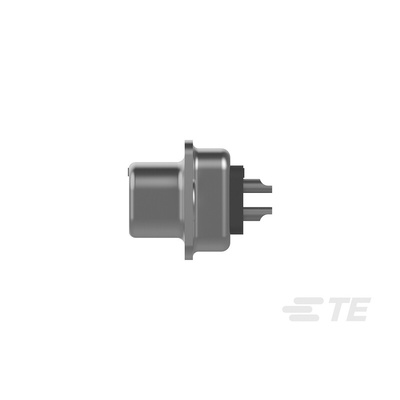

5-747905-5, TE Connectivity 9 Way Cable Mount D-sub Connector Socket, 2.77mm Pitch, Разъем

5-747905-5

Shell Type=Full Metal Shell, Connector Style=Receptacle, Connector System=Cable-to-Board, Shell Size=1, Shielded=Yes, Preloaded=Yes, Number of Positions=9, Insert Material=Thermoplastic, Contact Base Material=Phosphor Bronze, Contact Size=20, Contact Current Rating (Max)=3 A, Termination Method to Wire & Cable=Solder, PCB Mount Retention Type=None, Mating Connector Lock=With, Mating Connector Lock Type=Mounting Holes, Connector Mounting Type=Board Mount, Enclosure=Without, Centerline (Pitch)=2.77 mm, Wire Size=.5 – .6 mm², Operating Temperature Range=-55 – 105 °C, Circuit Application=Signal, Insert Flammability Rating=UL 94V-0, Packaging Method=Tray

Datasheet
