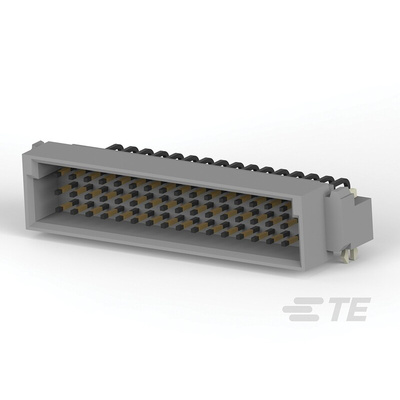

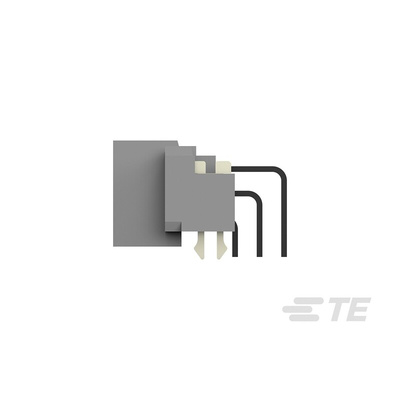

5650916-5, TE Connectivity, EUROCARD 2.54mm Pitch Backplane Connector, Male, Right Angle, 3 Row, 48 Way, 5650916

5650916-5

Connector & Housing Type=Plug, Connector System=Board-to-Board, Sealable=No, Connector & Contact Terminates To=Printed Circuit Board, DIN Size=Half, Number of Positions=48, Number of Rows=3, PCB Mount Orientation=Right Angle, Number of Columns=16, Rows Loaded=A, B, C, Operating Voltage=250 VAC, Contact Base Material=Copper Alloy, Contact Current Rating (Max)=1.5 A, Termination Method to Printed Circuit Board=Through Hole - Solder, Termination Post & Tail Length=2.64 mm, PCB Mount Retention Type=Boardlock, Connector Mounting Type=Board Mount, Housing Color=Gray, Centerline (Pitch)=2.54 mm, PCB Thickness (Recommended)=1.57 mm, Row-to-Row Spacing=2.54 mm, Operating Temperature Range=-55 – 105 °C, Circuit Application=Signal, UL Flammability Rating=UL 94V-0, Packaging Method=Package

Datasheet
