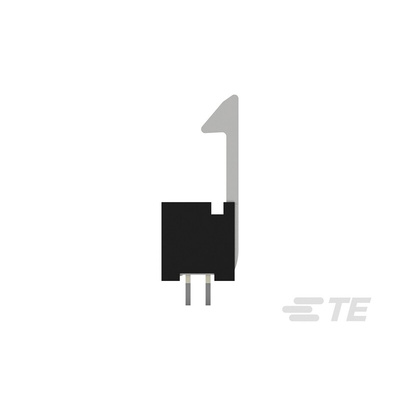

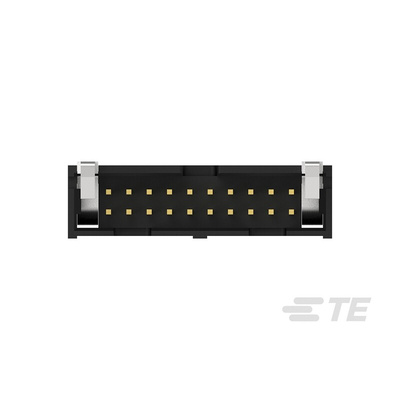

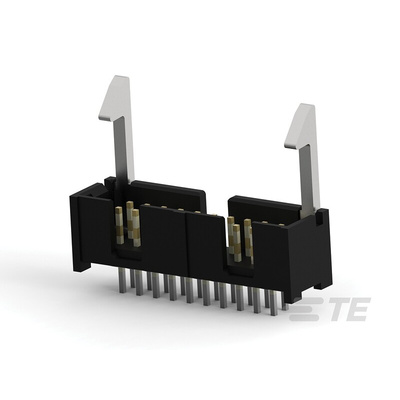

104128-4, TE Connectivity AMP-LATCH Series Straight Through Hole PCB Header, 20 Contact(s), 2.54mm Pitch, 2 Row(s), Shrouded

104128-4

Connector Product Type=Connector Assembly, Connector System=Board-to-Board, Connector & Housing Type=Receptacle, Connector & Contact Terminates To=Printed Circuit Board, Number of Positions=20, PCB Mount Orientation=Vertical, Number of Rows=2, Insulation Resistance=5000 MΩ, Post Size=.64 mm, Connector Profile=Low, Contact Base Material=Phosphor Bronze, Contact Current Rating (Max)=1 A, Termination Post & Tail Length=3.05 mm, Termination Method to Printed Circuit Board=Through Hole - Solder, Panel Mount Feature=Without, PCB Mount Retention=Without, Mating Alignment Type=Center,Dual Polarizing Bar, Mating Retention=With, Mating Retention Type=Ejection Latch, Housing Color=Black, Centerline (Pitch)=2.54 mm, Connector Height=9.77 mm, Row-to-Row Spacing=2.54 mm, Housing Temperature Rating=Standard, Operating Temperature Range=-65 – 105 °C, Solder Process Feature=Solder Dipped, Circuit Application=Signal, UL Flammability Rating=UL 94V-0, Packaging Method=Tray

Datasheet
