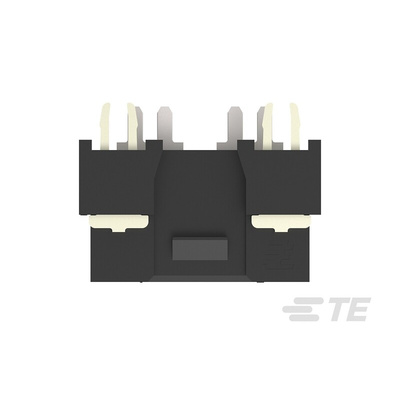

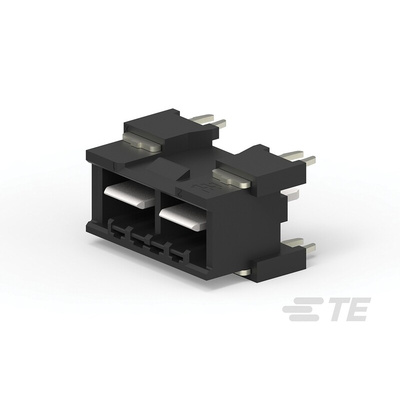

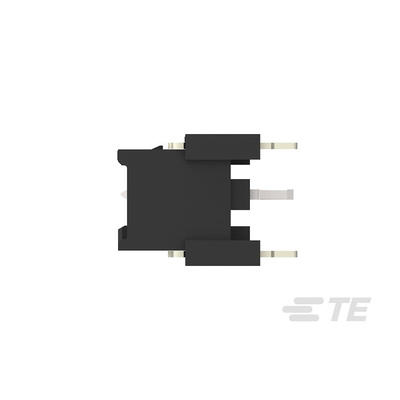

2042274-2, TE Connectivity ELCON Mini Series Straight Through Hole PCB Header, 2 Contact(s), 7.8mm Pitch, 1 Row(s), Shrouded

Support high current up to 40A per contact and a 400V rating with a cost effective stamped contact design
Small, 8mm height form-factor that is roughly the size of a space-saving HDMI connector
Oered in 2-, 3-, 4- and 6- (2x3) position configurations - broader, more versatile portfolio than the competition
Connector available in both vertical and right-angle mounts as well as press fit and through hole
Low resistance, highly reliable interface
Positive metal latch retention
Pull tab for power I/O applications
Coding contacts for sense/detect functionality
Touch-proof contacts and third pin for protective grounding
Press-fit attach or solder tail parts
Cable assemblies Oered in standard or high-flex designs for easier routability, and are highly customizable
Support 14-10 AWG cable sizes (2.5mm2 to 6mm2)
Applications
Power distribution
Power supplies
Data centers
Wireless
High Performance
Computing (HPC)
Storage
Servers
Switches & routers
Industrial electronic equipment
Cabinets
Telecom base stations
Factory automation
Medial diagnostic equipment

Datasheet 2042274-2
