Artesyn Embedded Technologies Switching Power Supply, LPQ253-C, 5 V dc, ±15 V dc, 6 A, 10 A, 35 A, 250W, Quad Output,, Источник питания

Artesyn Embedded Technologies Embedded Switch Mode Power Supply

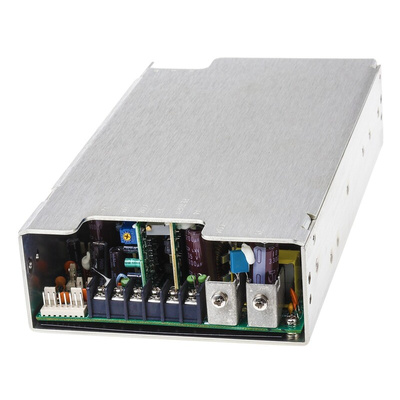

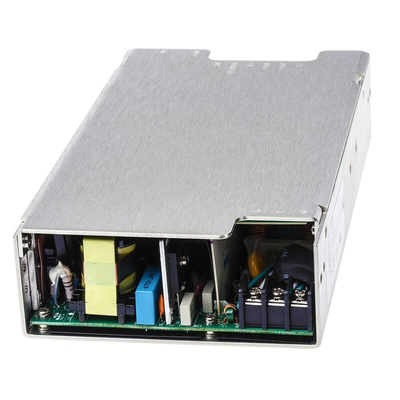

The Artesyn Embedded Technologies LPQ253-C series embedded switch-mode power supply is 250W, AC to DC plug-in device with four outputs. The 4th output of this AC power adapter is floating and adjustable and there are 2 supervisory outputs of 5V and 12V each. This power supply has active power factor correction and a built-in EMI filter. It has a universal input supply voltage rating ranging between 85VAC and 264VAC or 120VDC and 300VDC.
Note:
These AC/DC power supplies are not convection rated therefore stock numbers 192-1245 and 192-1251 which are not supplied with a fan require the user to provide 30CFM forced air cooling through the length of the power supply Derating ranging between 50°C and 70°C is 2.5% per °Suitable connecting kit for this AC/DC power supply: stock number 151-717

Features and Benefits

Built-in EMI filter
Chassis mount
Efficiency is 75% typically at full load
Enclosed package type
Output currents are 6A at 5V, 10A at 12V and 35A at 24V
Overload and thermal overload protection
Overvoltage protection
Power fail and remote inhibit
Remote sense on main output
Safety ground leakage current is less than 0.5mA at 50Hz to 60Hz and 264VAC input
Single wire current sharing

Certifications

BABT
BABT: EN60950/BS7002
CB
CISPR 22 Class B conducted and radiated
Class B conducted and radiated
CSA 22.2-234 level 5
CSA certified
EMC compliance to FCC Class B conducted and radiated
EN55022
EN61000-3-2
IEC EN6100-3-2(Active power factor correction)
NEMKO
NEMKO: EN 60950/EMKO-TUE (74 sec) 203
UL certified
UL1950
VDE
VDE 0878 PT3 Class B conducted and radiated
VDE: 0805/EN60950 (IEC950)

Approvals

VDE; UL Recognised; CSA Certified; NEMKO; BABT
