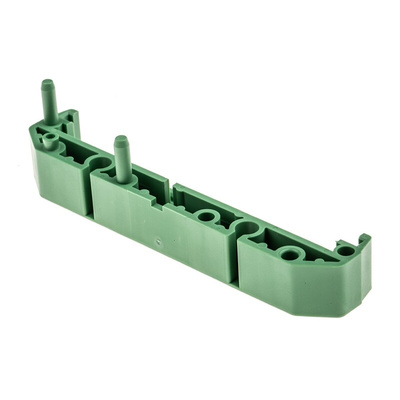

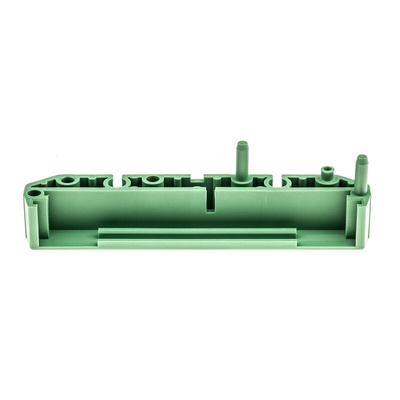

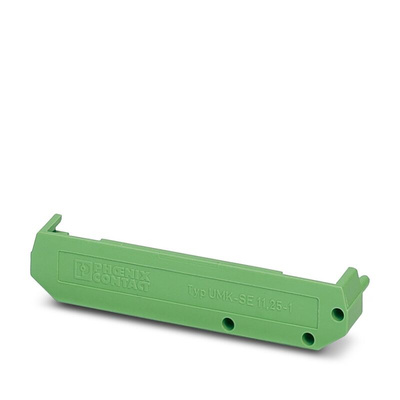

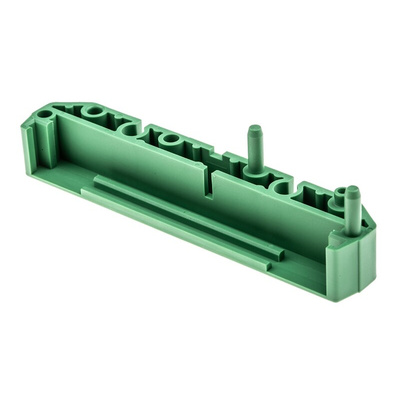

2970442, Phoenix Contact UMK-SE Series Side Element for Use with DIN-Rail

PCB Carrier Compact Modular System

The 2970442 from Phoenix Contact is a side element for DIN rails. This small side element allows you to connect other modules such as PCB's to your existing DIN rail. Thanks to the footing on this module, it can be slid onto any standard EN DIN rail, making it such a versatile tool. The plug-in principle that allows you to connect other modules creates a tight engagement with the other unit to ensure your valued modules are safe.

Not to mention, the 2970442 can also be wall mounting due to the mounting flange.

Features and benefits:

• Unit allows you to connect external PCB's and extensions


• Support all universal EN DIN rails thanks to its cleverly designed footing


• Forms a tight bond with other modules to ensure they're safe, even on vibration


• Built from a strong polyamide material. (V2 Flammability rating)

Need marking panels?

857-3777 – W 3.5mm H 25mm
857-3789 – W 12mm H 25mm

Phoenix Contact UMK-SE Series Housing Cover, Side Element, For DIN-Rail - 2970442

This Phoenix Contact housing Cover, side element from the UMK SE series is a versatile solution for electronic housing needs. Designed for use with DIN rails, this side element offers a range of advantages for automation, electronics, electrical, and mechanical industries. Its innovative design allows for easy marking and assembly, making it a go to choice for high traffic applications.

Features & Benefits

• Designed to be 11.25 mm wide, perfect for DIN Rail applications
• Allows for easy marking with marking grooves and PMB module marker
• Fast assembly with plug in module principle for secure connections
• Wide range of options for external conductor connections
• Universal foot for snapping onto standard EN DIN rails
• Mounting flange supports direct wall mounting

Applications

• Ideal for use in automation systems requiring secure housing solutions
• Perfect for electronic projects that need versatile and easy-to-install components
• Suitable for electrical setups that require efficient conductor connections
• Great for mechanical applications that demand sturdy and reliable housing elements

Can it be easily marked for identification purposes?

Yes, the side element allows for easy marking using marking grooves and the PMB module marker.

Is it suitable for high-traffic applications?

Yes, the housing cover is designed to withstand high-traffic environments with its secure connections and durable materials.

Can it be used for wall mounting?

Yes, the mounting flange supports direct wall mounting, making it a versatile choice for various setups.

Datasheet 2970442
