2956660, Phoenix Contact UM-BEFE 35-1 Series Base Element for Use with DIN Rail Terminal Blocks

PCB Carrier Modular System

Universal modules designed to accommodate one PCB. They comprise several individual base elements connected by metal pins giving the finished unit stability. 192-2771 incorporates a DIN rail mounting foot, which snap fits onto EN mounting rails. The side elements close the aligned base elements on both sides, completing the unit.

Assembly is very fast, due to the plug-in modular principle
Individual elements are tightly engaged and stable
Universal foot for snap fit to EN mounting

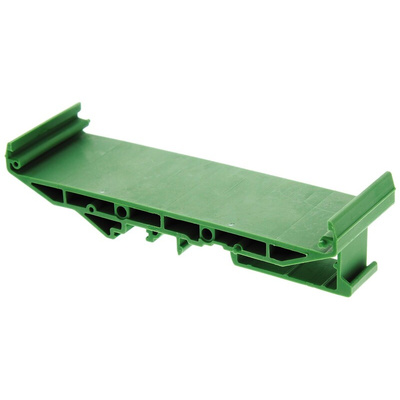

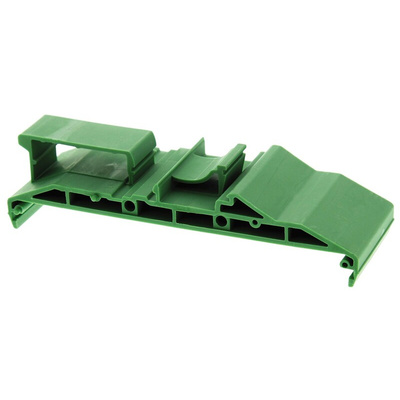

DIN Rail base element – 2956660

The 2956660 from Phoenix contact is a DIN rail base element that will allow you to connect a module that doesn't natively support DIN rail connection, onto the rail with ease. This base element will allow you to mount your devices onto NS 32 and NS 35/7.5 rails for maximum versatility and space efficiency in your cabinet. With an effortless install onto the rail by a simple snap-on motion you can get your new modules installed in record time. This base doesn't contain any ribs and is made from a strong and durable polyamide materials.

The base element itself is a short 35mm in length.

Features and benefits:

• Effortlessly mount your additional devices to a DIN rail with ease.


• No ribs on the footing.


• Simple snap-on technology allows you to clip the foot with a device on so you don't have to mess with taking other devices off.


• Green in colour to match other Phoenix Contact accessories and products for a uniform look.


• Polyamide material is a strong material and has a flammability rating of 'V0'

Datasheet 2956660
