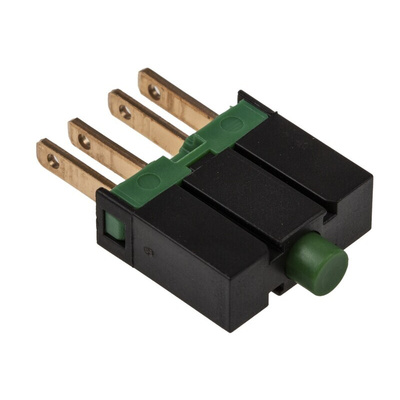

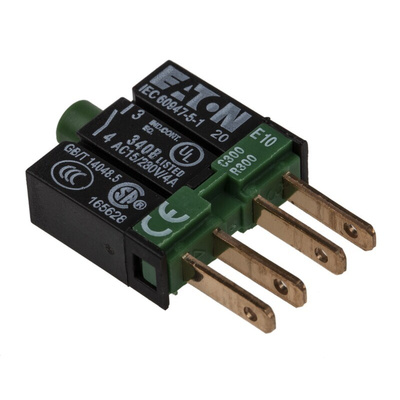

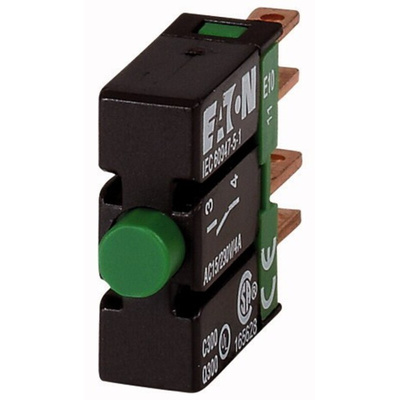

090351 E10, Eaton Contact Block for Use with RMQ 16 Series, 5→250V, 1NO

Eaton Contact Block For Use With RMQ 16 Series, 4A Rated Current, Screw Terminals - 090351 E10

This contact block from Eaton is an electrical circuit connector that makes or breaks the power supply to an actuator. It's compatible with Eaton's range of RMQ front elements and emergency push buttons, which feature sleek designs and flush finishes. Screw connectors make wiring easy, as you only need a screwdriver to achieve durable connections that won't work loose, even with vibration. A mechanical lifespan of up to 100 million operations means you can rely on the unit to offer an extended service life. Choose a contact block like this for automated assembly lines or commercial equipment like elevators.

Features & Benefits

• IP20-rated housing is touch-proof and protected against objects larger than 12mm
• Resists corrosion and the weathering effects of UV light, so compatible with industrial settings
• Meets IEC/EN 60947 safety requirements for low-voltage switchgear used on power systems
• Suitable to use in demanding environments, thanks to its wide operating temperature range of -25°C to +60°C

Is this contact block protected against short circuits?

Yes, it's protected against short circuits, so there's minimal risk of electrical faults damaging the unit.

Note

Eaton formerly known as Moeller

Eaton RMQ 16mm Range

A range of control devices with an IP65 protection rating and conforming to IEC 947-5-1. The standard fixing aperture is 16mm. Behind panel depth (including terminals) is only 49mm. The devices can be butted together allowing a greater number of devices to be fitted into a smaller area compared to 22.5mm devices. One or two normally open or normally closed contacts, which are available separately in this range, can be fitted to each switch. Colour coded contacts 230V/4A, having low current voltage switching with a life expectancy of three million operations.

Datasheet - Eaton E10

Instruction Sheet - RMQ16: Mounting Of Components (IL04716016Z)
