RS PRO Signal Conditioner, Current Input, Current Output

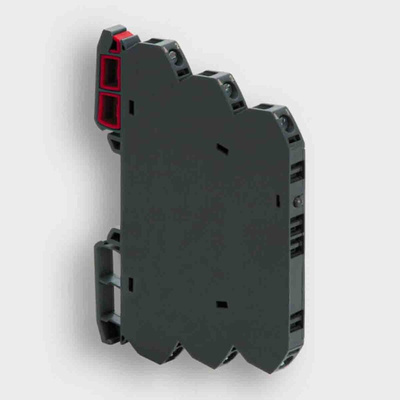

RS PRO Isolating Signal Converter with Current Inputs

This RS PRO isolating signal converter is designed to transfigure signals with maximum efficiency. Screw terminals keep the converter tight in place on a DIN rail mounting to stop vibration wear and accidental deactivation.
The Ingress Protection (IP) rating of IP20 assures you the converter is secured against dust build-ups that could damage the mechanism. Its -25°C to +60°C operating temperature range makes it suitable for use in harsh work environments.
The two-way isolation protects the input and output signals from interfering with one another. The device has a suppressor diode of 33 V to protect your circuit from current variations and blowouts caused by electrically fast transients (EFT) or electro-static discharge (ESD).

Features and Benefits

• Input range of 4 to 20 mA
• Current input type
• Maximum operating temperature of +60°C
• Minimum operating temperature of -25°C
• Isolating signal converter module type
• DIN rail mounting type
• Output range of 4 to 20 mA
• Current output type
• Analogue to analogue signal conditioner type
• Special features of two-way isolation
• Screw termination
