RS PRO Signal Conditioner, Current Input, Current, Voltage Output, 24V ac/dc Supply

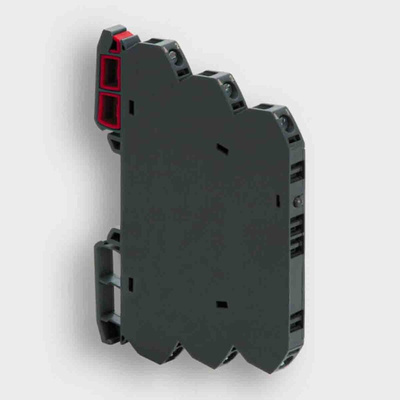

RS PRO Isolating Signal Converter with Current Inputs

This RS PRO isolating signal converter transforms and relays analogue signals between sensors and designated devices. Use it to safeguard against changing voltages and power surges.
An LED indicates when there's a problem with the unit so you can attend to faults without risking damage to your devices. The DIN rail mounting enables you to install this product in limited spaces with little effort.
An Ingress Protection (IP) rating of IP20 rating means the casing protects you from direct contact with the circuits so you don't sustain electrical shocks. You can install the converter in dust-free industrial environments.

Features and Benefits

• Input range of 4 to 20 mA
• Current input type
• Maximum operating temperature of +60°C
• Minimum operating temperature of -25°C
• Operating temperature range of -25 to +60°C
• Isolating signal converter module type
• DIN rail mounting type
• Output range of 0 to 10 V
• Current and voltage output type
• Analogue to analogue signal conditioner type
• Special features of three-way isolation
• Supply voltage of 24 V AC/DC
• Screw termination
