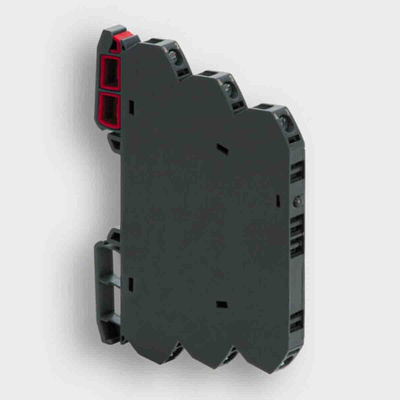

RS PRO Signal Conditioner, Current Input, Current, Voltage Output, 24V ac/dc Supply

RS PRO Isolating Signal Converter with Current Inputs

Use this RS PRO isolating signal converter to safely and effectively convert the analogue input and output signals between your sensors and operating equipment. The product safeguards against voltage spikes and power surges.
A green LED shows the converter is functioning correctly and allows you to quickly identify problems to prevent damage to devices. You can mount this item on DIN rails to save space and keep the unit out of the way.
The casing has an Ingress Protection (IP) rating of IP20 so it protects the inner circuits from human touch and larger corrosive particles. You can use the item for automotive and industrial purposes.

Features and Benefits

• Input range of 4 to 20 mA
• Current input type
• Maximum operating temperature of +60°C
• Minimum operating temperature of -25°C
• Operating temperature range of -25 to +60°C
• Isolating signal converter module type
• DIN rail mounting type
• Output range of 4 to 20 mA
• Current and voltage output type
• Analogue to analogue signal conditioner type
• Special features of three-way isolation
• Supply voltage of 24 V AC/DC
• Screw termination
