RS PRO Signal Conditioner, Voltage Input, Current, Voltage Output, 24V ac/dc Supply

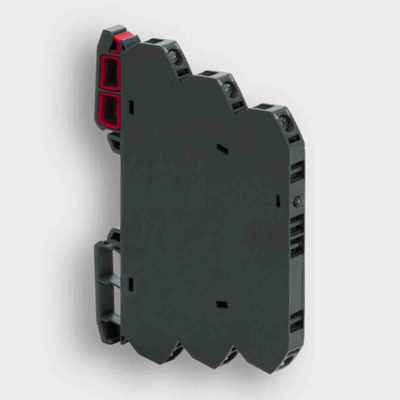

RS PRO Isolating Signal Converter with Voltage Inputs

Use this RS PRO isolating signal converter to transform analogue signals and relay the correct voltage to your electronic applications. It prevents power spikes and surges to protect your devices.
The polyamide (PA) 6.6 construction ensures that the unit is durable so you can install it in commercial settings. A green LED status indicator alerts you to possible problems without having to open the casing.
This converter carries an Ingress Protection (IP) rating of IP20, which means it shields circuits from human touch and larger corrosive particles. You can use the product for industrial and manufacturing purposes.

Features and Benefits

• Input range of 0 to 10 V
• Voltage input type
• Maximum operating temperature of +60°C
• Minimum operating temperature of -25°C
• Operating temperature range of -25 to +60°C
• Isolating signal converter module type
• DIN rail mounting type
• Output range of 0 to 10 V, 0 to 20 mA and 4 to 20 mA
• Current and voltage output type
• Analogue to analogue signal conditioner type
• Special features of three-way isolation
• Supply voltage of 24 V AC/DC
• Push-in termination
