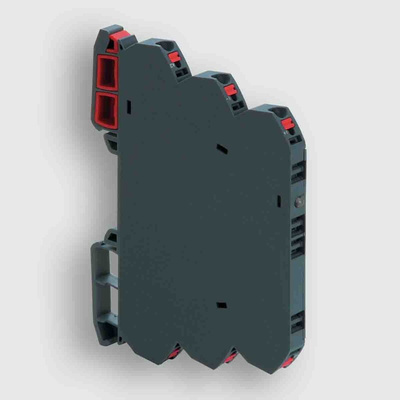

RS PRO Signal Conditioner, Current Input, Current, Voltage Output, 24V ac/dc Supply

RS PRO Isolating Signal Converter with Current Inputs

This RS PRO isolating signal converter transforms input signals and relays the correct output signals to industrial applications. Use it to prevent voltage spikes and surges that can damage equipment and endanger safety.
The compact design and DIN rail mounting capability allow you to install the unit in limited spaces. An LED shows the operating status and alerts you to probable malfunctions that put devices at risk. You can use this product in commercial settings as the polyamide (PA) 6.6 composition makes it robust and durable.
The product's Ingress Protection (IP) rating of IP20 means you're protected from electrical shocks when handling the converter. This product is suitable for manufacturing and healthcare applications.

Features and Benefits

• Input range of 4 to 20 mA
• Current input type
• Maximum operating temperature of +60°C
• Minimum operating temperature of -25°C
• Operating temperature range of -25 to +60°C
• Isolating signal converter module type
• DIN rail mounting type
• Output range of 0 to 10 V, 0 to 20 mA and 4 to 20 mA
• Current and voltage output type
• Analogue to analogue signal conditioner type
• Special features of three-way isolation
• Supply voltage of 24 V AC/DC
• Push-in termination

Datasheet
