RS PRO Double Door Magnetic Door Lock, 2 x 600lb Holding Force 12 → 24V dc

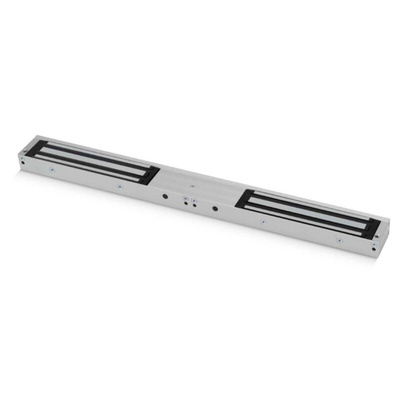

RS PRO Unmonitored Double Mini-Magnet Lock, Fail Safe & Fire Rated

The unmonitored double mini-magnet lock (maglock) from RS PRO is a compact yet robust electro-magnetic lock, ideal for providing a secure door lock in a range of commercial or private buildings. The RS PRO double mini-magnet lock features a durable aluminium construction and electrically powered magnet that when energised, creates a secure lock when contact is made with a metal plate or bracket. The RS PRO mini-magnet lock also offers 2 x 600lbs holding force, making it perfect for use in a wide range of environments that require a simple yet effective lock. For enhanced security this high quality maglock is FD30 and FD60 fire rated and fail safe, ensuring that it will remain operational in the event of a loss of power. This unmonitored maglock is perfect for providing a simple electronic lock that doesn’t require additional outputs to an alarm or signal to indicate it is locked. Furthermore, due to the slimline design the maglock can be installed in a wide range of applications from door frames to cabinets, making it highly versatile and cost effective.

Features and Benefits

• Aluminium construction offering excellent durability and corrosion resistance


• Operating voltage 12Vdc /24Vdc selectable providing versatile installation options


• FD30 + FD60 rating


• Fail safe allowing the door to still open in the event of a loss of power


• 2 x 600lbs holding force making it ideal for use in a wide range of environments to prevent unwanted authorisation


• Slimline design allowing the device to be installed in a wide range of applications


• Non-monitored making it perfect for general purpose locking that doesn’t require an alarm or signal


• Safety bolts fitted

Applications

Electro-magnetic locks (also referred to as maglocks) are a type of access control solution, providing a secure lock for a door via electrically powered magnets. When energised, magnetic door locks created a strong bond to metal plates installed and can offer varying holding force ratings depending on the level of security required. Magnetic locks are available as monitored and unmonitored depending on whether an alarm or signal is required to notify occupants of an emergency, or when the door is locked or unlocked. Magnetic locks are used in a wide range of commercial and public buildings including:

• Residential


• Shops


• Offices


• Warehouses


• Storage units

Standards

BS EN1634:1

FAQs

What is fail safe?

Magnetic locks that feature a fail safe feature are perfect for buildings that require a door to still be accessed or opened in the event of an emergency or drop of power. Fail safe ensures that when power is dropped to the lock, the door can still be opened with physical force by someone pushing against it.

What brackets and plates are suitable?

The following accessories are suitable for use with the RS PRO mini magnet lock range:

• RS Stock No. 1924554 – RS PRO Surface Armature Housing


• RS Stock No. 1924555 – RS PRO Double Covered Z & L Bracket


• RS Stock No. 1924556 – RS PRO L Bracket

RS PRO Datasheet
