RS PRO USB C to HDMI Adapter, USB 3.1, 1 Supported Display(s)

RS PRO USB Type C to HDMI, USB 3.0 and RJ54 Gigabit Adapter with Power Delivery

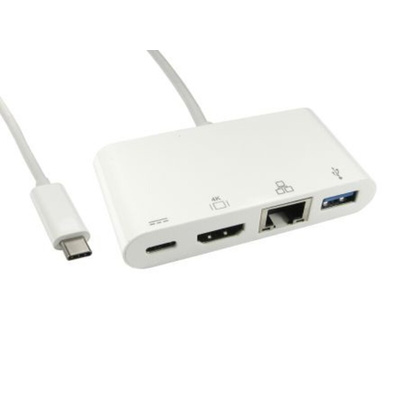

Introducing the RS PRO USB Type C to HDMI, USB 3.0 and RJ54 Gigabit Adapter, a compact and all in one portable display solution for devices with a USB Type C connection socket. It has been designed with a male USB C connector that links to an adapter housing offering female HDMI, USB 3.0, RJ54 and USB C charging connection port, all in a durable housing for optimum performance. This RS PRO adapter has been designed with the highest quality and versatility in mind, making it an ideal addition to any application or environment requiring USB to video cable assembly setups.

Features and Benefits:

• This range of RS PRO USB Type C cables are an ideal addition for greater flexibility, connecting HDMI display monitors to a computers or laptops that have a USB Type C output in a wide range of applications


• The RJ54 socket allows for a Gigabit Ethernet connection to a computer or laptop, allowing for greater versatility


• The compact male to female adapter has a durable housing for greater protection, especially when being used on the go


• Thanks to the female USB 3.0 port, the adapter also supports peripheral devices like mice and keyboards or USB hubs, providing an all in one adapter


• For additional flexibility and functionality, the female USB C port can be used to charge devices and supports power delivery up to 60W (20 V / 3 A)


• These adapters from RS PRO provide a reliable high-speed connection


• Plug and Play - no additional software required


• Supports USB 3.0 Super Speed (5 Gbps) transmission which is backward compatible with USB 2.0; through BC1.2, the power of USB-A port can be up to 7.5 w (5V / 1.5A); HDMI video resolution max up to 4Kx2K @ 30 Hz; 10 / 100 / 1000 Mbps bandwidth and twisted pair crossover detection and auto-correction


• Compatible with MacBooks, Google Pixel Chromebook and any other USB C supported devices


• RoHS, REACH and CE compliant

Applications:

USB Video Adapters allow you to convert any compatible USB port into an external video output, which in turn offers the flexibility of adding additional display monitors to a desktop computer or laptop setup. Also known as a USB Graphics Adapter, it can easily adapt a USB port into a variety of video connections which offers a flexible and convenient way of adding on multi-monitor capabilities. USB adapters are designed with a variety of different connector types to suit all of your requirements. These types of adapters are most commonly used in:

• Desktop computer setups


• Laptops


• Projectors

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

Note:

• The power delivery port supports PD 2.0


• If the device or charger uses a different protocol the charging current will drop to 500mAH or less
