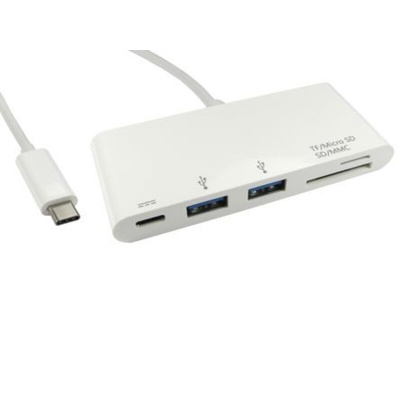

RS PRO 2 Port USB 3.0 USB C Hub, USB Powered

RS PRO USB Type C to 2 Port USB Hub with Card Reader and USB C Charging Port

Introducing the RS PRO USB Type C to 2 Port USB Hub, with a card reader and power delivery functionality, ideal for connecting 2 USB compatible devices to a computer with a USB C port. It has been designed with a male USB C connector to 2 x USB A, a USB C and SD/Micro SD connectors in one smart housing. The USB A connectors can support USB 3.0 super speed transmission (5 Gbps) and are also backward compatible with USB 2.0 for added versatility and flexibility across applications, while the USB C socket offers power delivery. These RS PRO hubs have been designed with the highest quality and versatility in mind, making it an ideal addition to any application or environment requiring multiple USB cable assembly setups.

Features and Benefits:

• This RS PRO USB hub is an ideal addition for greater flexibility when connecting multiple USB compatible devices into one central dock across a wide range of applications


• Designed with 2 USB A sockets, an SD/Micro SD card reader and USB C power delivery socket, this hub caters for most devices with compatible connectivity


• These hubs from RS PRO provide a reliable high-speed connection with Plug and Play and hot-swap functionality, meaning no installation time and no additional software required


• USB C port supports battery charging 1.2 (Max. power is 7.5W / 5V / 1.5A)


• Card reader slot is compatible with SD, MicroSD (max. 128GB) and MMC cards and supports Secure Digital v3.0 UHS-I (Reading speed max: 70 Mbps; Writing speed max: 90 Mbps)


• Hub cable length: 150 mm


• RoHS, REACH and CE compliant

Applications:

USB hubs are generally used for connecting multiple peripheral devices with a USB port to a host device, most commonly a PC or laptop. The hub generally has a mixture of ports to cater for a range of different connectors and applications, making them a really versatile addition to your home or office environment. Most often, they will have Plug and Play software installed, allowing the user to be able to utilise the cable immediately, saving on installation time and making it easy to use. These hubs are most commonly used alongside:

• Printers and scanners


• Desktop PC or laptop


• Tablets and mobile phones


• External storage devices, drivers and routers


• Games consoles


• Keyboards, mice and other IT peripherals

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

Note:

• SD/MMC and MicroSD ports will not work simultaneously


• The power delivery port supports PD 2.0


• If the device or charger uses a different protocol the charging current will drop to 500mAH or less
