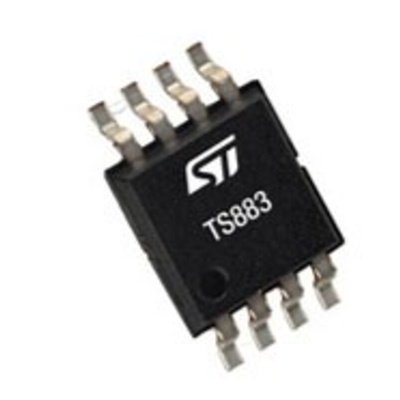

TS883IST STMicroelectronics, Dual Comparator, Rail to Rail O/P, 0.9 → 5.5 V 8-Pin MiniSO, Компаратор

The open-drain series of nanopower comparator integrates a single version TS880 and a dual version TS883. They feature an ultra low supply current of 250 nA typical per operator with rail-to-rail input capability and open-drain output. The performance of these comparators allows them to be used in a wide range of portable applications. The TS880 and TS883 minimize battery supply leakage and therefore enhance battery lifetime. Operating from 0.9 to 5.5V supply voltage, these comparators can be used over a wide temperature range (-40 to +125 °C) keeping the current consumption at an ultra low level

Ultra low current consumption: 250 nA typ./op.
Propagation delay: 2 μs typ.
Rail-to-rail inputs
Open-drain outputs
Supply operation from 0.9 V to 5.5 V
Wide temperature range: -40 to +125 °C
ESD tolerance: 8 kV HBM
Single version available in SC70-5 and SOT23-5 package
Dual version available in MiniSO8 and DFN8 2x2 mm package

Datasheet 5499910-6

Datasheet TS883IST
