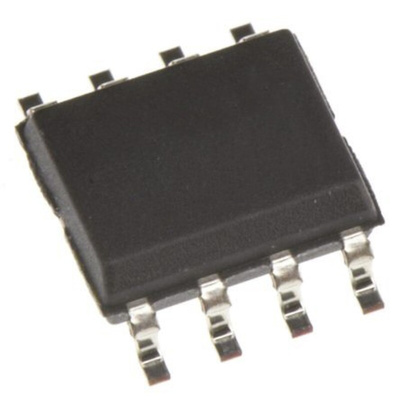

STMicroelectronics LDL212D33R, 1 Linear Voltage, Voltage Regulator 1.2A, 3.3 V 8-Pin, SOIC, Регулятор напряжения

The LDL212 provides 1.2 A of maximum current from an input voltage range from 2.5 V to 18 V, with a typical dropout voltage of 350 mV @ 1.2 A. The high power supply rejection ratio of 87 dB at 120 Hz, and more than 40 dB at 100 kHz, makes the LDL212 suitable for direct regulation in SMPS and secondary linear regulation in DC-DC converters. The LDL212 goes to shutdown mode due to the enable logic control function, reducing the total current consumption. The device also includes the current limit, SOA and thermal protections.

Input voltage from 2.5 V to 18 V
20 V AMR

Adjustable version from 1.18 V to VIN - VDROP(MAX)
Guaranteed output current 1.2 A
Typical dropout 350 mV @ 1.2 A
Undervoltage lockout
Enable function
Internal thermal, current and power limitation
High PSRR: 87 dB @ 120 Hz, 75 dB @ 1 kHz
Operating temperature range: -40 °C to 125 °C
Packages SO-8 batwing plastic micropackage, DFN6 (3x3) and DFN6 (2x2)

Datasheet LDL212D33R
